Product Overview
The CKJPFP80/SC is a high-performance Low Smoke Halogen Free (LSHF), Flame Retardant, and Screened marine control cable designed for critical power, lighting, and control circuits. It combines enhanced fire safety with flexible mechanical protection and electromagnetic shielding in a streamlined design. Featuring XLPE insulation, an EMI screen, tinned copper wire braid armor, and a single Thermoplastic Polyolefin (SHF1) inner sheath (no outer oversheath), it is ideal for grounding-ready installations in demanding marine and industrial environments. The cable fully complies with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize the emission of toxic, corrosive fumes and smoke, significantly improving personnel safety during fire incidents in enclosed spaces.
-
Flexible Armor & EMI Shielding: The flexible tinned copper wire braid armor provides excellent mechanical protection against abrasion, cutting, and vibration, while facilitating easier installation. An integrated electrical screen ensures reliable protection against electromagnetic interference (EMI/RFI) for signal integrity.
-
Grounding-Ready, Streamlined Design: The single SHF1 sheath applied directly over the armor, with no outer oversheath, allows for direct access to the conductive armor. This design facilitates reliable grounding connections in control panels, cabinets, or grounded cable trays.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

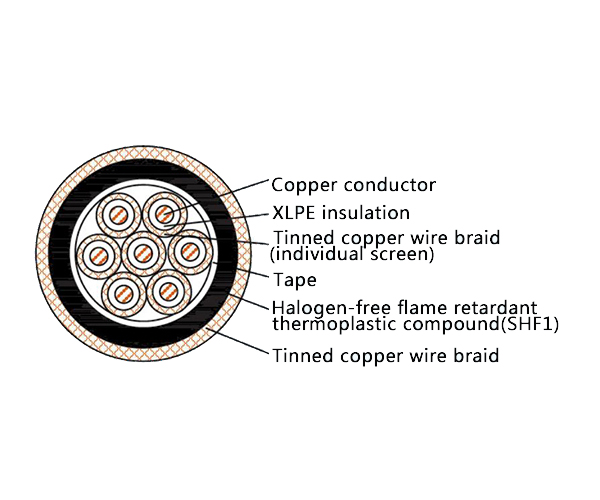

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for circuits that require a balance of fire safety, signal integrity, flexible mechanical protection, and a dedicated grounding path via the armor.
-
Marine & Offshore: Control, instrumentation, and auxiliary power systems within ship engine rooms, control panels, and on offshore platforms, particularly where LSHF regulations apply and the flexible, grounded armor is required for electrical safety and noise reduction.
-
Industrial Control Systems: Sensitive control and automation wiring in power plants, manufacturing facilities, and process industries where protection against EMI, mechanical stress, and fire hazards is essential, and where cables are terminated into grounded enclosures.
