Product Overview
The CKJPFP86/SC is a premium Low Smoke Halogen Free (LSHF), Flame Retardant, and Screened marine control cable designed for applications requiring superior fire safety, excellent electromagnetic compatibility, and flexible mechanical protection. It features XLPE insulation, an effective EMI screen, a flexible tinned copper wire braid armor, and a durable double-layer Thermoplastic Polyolefin (SHF1) sheath. This construction provides an ideal balance of safety, signal integrity, and durability for sensitive control and power systems in demanding marine, offshore, and industrial environments, in full compliance with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties significantly reduce the emission of toxic and corrosive fumes and smoke density, enhancing personnel safety during fire incidents and improving visibility for evacuation and firefighting.
-
Dual-Layer EMI & Flexible Armor Protection: Combines an electrical screen for reliable protection against electromagnetic interference (EMI/RFI) with a flexible tinned copper wire braid armor. This armor provides robust mechanical defense against abrasion, cutting, and vibration while maintaining good cable flexibility for easier installation.
-
Robust Double-Layer Sheath: The dual-layer Thermoplastic Polyolefin (SHF1) sheath offers excellent overall mechanical toughness, moisture resistance, and protection against environmental factors, ensuring long-term reliability.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

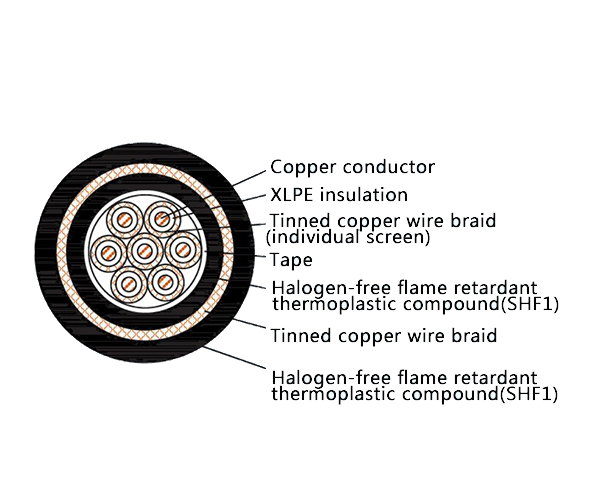

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 8 | Tinned / Plain Copper Wire Braided |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for critical circuits that require a combination of fire safety, signal clarity, mechanical durability, and installation flexibility.
-
Marine & Offshore: Control, instrumentation, and power systems on ships and offshore platforms, particularly in areas where LSHF safety codes apply, flexibility is needed for routing, and protection against EMI and physical damage is essential.
-
Industrial Automation & Infrastructure: Sensitive control wiring in power plants, chemical processing facilities, and manufacturing plants where protection against electromagnetic interference, mechanical stress, and fire hazards is required.
