Product Overview
The CKJPFP90/SC is a high-performance Low Smoke Halogen Free (LSHF), Flame Retardant, and Screened marine control cable featuring galvanized steel wire armor and a single Thermoplastic Polyolefin (SHF1) sheath. Engineered for critical power, lighting, and control circuits, it combines enhanced fire safety with robust mechanical protection and electromagnetic shielding. The streamlined design, with no outer oversheath, makes it ideal for installations where the armor is required for direct grounding. It fully complies with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize toxic and corrosive fume emissions, significantly improving personnel safety during fire incidents in enclosed spaces.
-
Robust Mechanical & EMI Protection: The galvanized steel wire braid armor provides maximum resistance against crushing, impact, and rodent damage. An integrated electrical screen protects against electromagnetic interference (EMI/RFI) for signal integrity.
-
Grounding-Ready Design: The single SHF1 sheath over the armor, with no outer oversheath, allows for direct access to the conductive steel armor, facilitating reliable grounding connections in panels, trays, or to structural hulls.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.

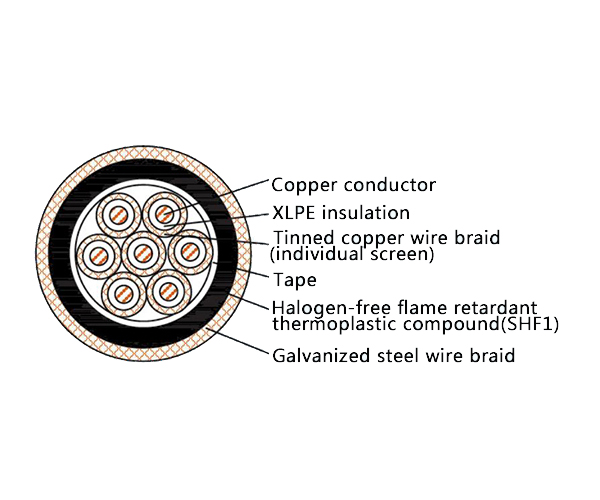

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for critical circuits that require a combination of fire safety, signal integrity, extreme mechanical protection, and a dedicated grounding path via the armor.
-
Marine & Offshore: Vital control, automation, and power supply systems in ship engine rooms, machinery spaces, and on offshore platforms, particularly where LSHF regulations apply and the armored cable must be grounded to the ship's hull or platform structure.
-
Heavy Industrial Plants: Control and instrumentation wiring in power generation facilities, chemical plants, and mining operations where exposure to physical damage, EMI, and stringent fire safety standards are all critical concerns.
