Product Overview
The CKJPFP96/SC is a robust Low Smoke Halogen Free (LSHF), Flame Retardant, Screened, and Armored marine control cable designed for critical applications demanding maximum safety, durability, and signal integrity. It combines XLPE insulation with an EMI screen, heavy-duty galvanized steel wire armor, and a protective double-layer Thermoplastic Polyolefin (SHF1) sheath. This construction is engineered to provide superior fire safety, excellent electromagnetic interference (EMI) protection, and outstanding mechanical defense in the harshest marine, offshore, and industrial environments, fully complying with IEC 60092, IEC 60754 (Halogen Free), and IEC 61034 (Low Smoke) standards.
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties minimize the production of toxic, corrosive fumes and smoke, significantly enhancing personnel safety during fire incidents and facilitating safer evacuation and firefighting operations.
-
Maximum Mechanical & EMI Protection: The galvanized steel wire braid armor provides exceptional resistance against crushing, impact, abrasion, and rodent damage. An integrated electrical screen ensures reliable protection against electromagnetic interference (EMI/RFI) for sensitive control signals.
-
Durable Double-Layer Sheath: The dual-layer Thermoplastic Polyolefin (SHF1) sheath offers excellent overall mechanical toughness, moisture resistance, and protection against oils and chemicals, ensuring long-term cable integrity in demanding installations.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Outer Sheath Color: Black (other colors available upon request).

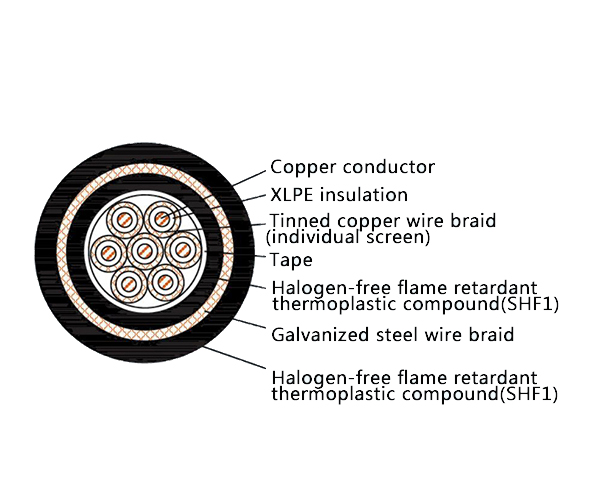

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is specified for vital circuits in the most demanding and safety-critical installations:
-
Marine & Offshore: Essential control, power, and safety system circuits on ships, oil & gas platforms, and FPSOs, particularly in high-risk fire zones, engine rooms, exposed decks, and areas subject to severe mechanical stress.
-
Heavy Industrial Infrastructure: Critical control and automation systems in power generation plants, chemical processing facilities, mining operations, and heavy metallurgy where LSHF regulations, extreme physical hazards, and electromagnetic noise are all present.
