Product Overview
The CKJPFP/SC is a Low Smoke Halogen Free (LSHF), Flame Retardant, and Screened marine control cable designed for power, lighting, and control systems where enhanced fire safety and protection against electromagnetic interference are required. It features XLPE insulation, an integrated electrical screen, and an outer Thermoplastic Polyolefin (SHF1) sheath. This cable provides a reliable and safe solution for signal integrity and circuit protection in demanding marine, offshore, and industrial environments, fully complying with IEC 60092 standards and key LSHF specifications (IEC 60754, IEC 61034).
Key Features & Benefits
-
Enhanced Fire Safety (LSHF): Halogen-Free (IEC 60754) and Low Smoke (IEC 61034) properties significantly reduce the emission of toxic, corrosive fumes and smoke density during a fire, improving visibility and safety for personnel evacuation and emergency response in confined spaces.
-
Effective EMI/RFI Shielding: The integrated screening layer (tinned copper braid or Alu/Polyester tape) provides essential protection against electromagnetic and radio frequency interference (EMI/RFI), ensuring stable and accurate signal transmission for sensitive control and instrumentation circuits.
-
Durable & Reliable Construction: XLPE insulation offers excellent thermal stability (rated for 90°C) and electrical properties. The outer Thermoplastic Polyolefin (SHF1) sheath provides good mechanical protection, flexibility, and resistance to environmental factors.
Technical Specifications
-
Rated Voltage: 150/250V
-
Maximum Continuous Conductor Temperature: 90°C
-
Available Conductor Cross-Sections: 0.5 mm², 0.75 mm², 1.0 mm², 1.5 mm², 2.5 mm²
-
Core Configuration: 1 to 37 Cores.
-
Standard Sheath Color: Black (other colors available upon request).

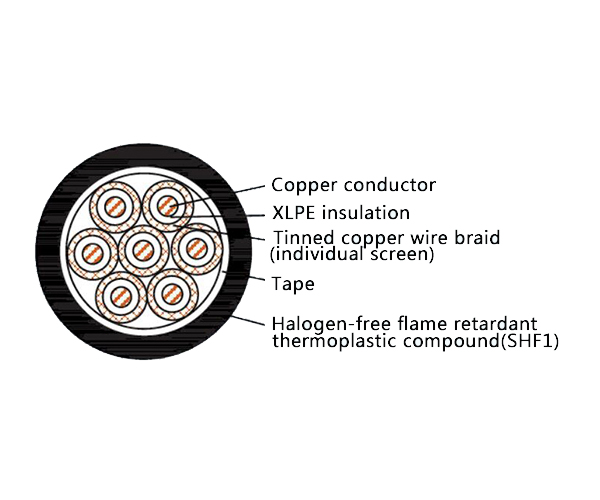

Construction Details
| Item | Code | Material / Description |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | / | Tinned / Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulation |
| Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Tinned Copper Wire Braid, OR Aluminium/Polyester Tape with Copper Drain Wire |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Standards & Compliance
This cable is designed and tested in accordance with key international safety and performance standards:
-
General Design: IEC 60092-350, IEC 60092-376
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardant: IEC 60332-1, IEC 60332-3-22
-
Halogen Free: IEC 60754
-
Low Smoke Emission: IEC 61034
Applications
This cable is ideally suited for applications where signal clarity and enhanced fire safety are priorities, without the need for mechanical armor.
-
Marine & Offshore: Control, automation, and instrumentation systems in accommodation areas, control rooms, bridge equipment, and communication panels on ships and oil platforms where LSHF regulations are enforced.
-
Industrial & Infrastructure: Sensitive control wiring in power plants, chemical processing facilities, railway signaling, and public buildings where protection against electromagnetic interference and compliance with low smoke, halogen-free safety standards are critical.
