Product Overview
The CJPFR80NC is a premium halogen-free, low-smoke, fire-resistant marine flexible power cable, engineered for circuits where maintaining circuit integrity during a fire is critical. It features a mica glass tape and XLPE insulation system for fire resistance, a thermoplastic polyolefin (SHF1) inner sheath, and tinned copper wire braid armor. This combination provides superior fire safety, excellent flexibility, and electromagnetic shielding for essential systems on vessels and offshore installations.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Tinned or Plain Stranded Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

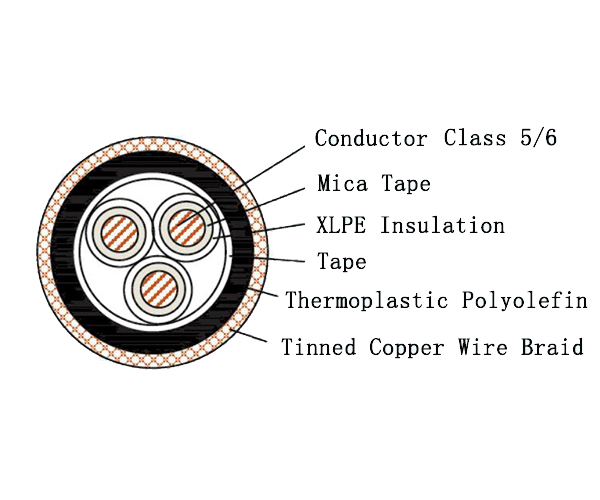

Cable Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin(SHF1) |
| Armor | 8 | Tinned/Plain Copper Wire Braided |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NC | Halogen Free Low Smoke Fire Resistant |
Key Performance Characteristics
-
Certified Fire Resistance: Complies with IEC 60331, ensuring the cable can continue to operate for a specified period under direct flame exposure, which is vital for emergency lighting, alarm, and power circuits.
-
Enhanced Fire Safety Suite: Offers a comprehensive safety package including flame retardancy (IEC 60332-1, -3-22), halogen-free materials (IEC 60754), and low smoke emission (IEC 61034), maximizing safety for personnel and equipment in fire scenarios.
-
High Flexibility & Shielding: The tinned copper wire braid armor provides effective electromagnetic compatibility (EMC) shielding and adds flexibility, making the cable suitable for routing in control panels and tight spaces.
-
Reliable Insulation System: The mica glass tape overlay on XLPE insulation is key to its fire-resistant properties, maintaining insulation integrity at high temperatures.
Standards & Compliance
This cable meets the highest marine fire safety standards:
-
IEC 60092-350, 353 (General construction and armor)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation and sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy)
-
IEC 60754 (Halogen-free)
-
IEC 61034 (Low smoke density)
Typical Applications
This cable is specified for critical circuits where maintaining operation during a fire is essential:
-
Marine & Offshore: Emergency lighting systems, alarm and detection circuits, control systems for fire pumps, and other essential safety and power circuits on ships, oil platforms, and offshore structures.
-
Industrial: Safety-critical power and control wiring in public buildings, tunnels, power plants, and industrial complexes where circuit integrity under fire conditions is required by regulation or best practice.
