Product Overview
The CJPFR86/SC is a halogen-free, low-smoke, flame-retardant marine flexible power cable engineered for high-flexibility applications in demanding environments. It features fine-stranded conductors, XLPE insulation, a tinned copper wire braid armor, and an additional outer protective sheath. This dual-sheathed construction provides superior mechanical protection and flexibility, making it ideal for dynamic or complex routing in control systems and power circuits on vessels and offshore installations.
Technical Specifications
-
Rated Voltage (U₀/U): 0.6/1 kV
-
Maximum Continuous Conductor Temperature: 90°C
-
Conductor: Class 5/6 (Fine Strand) Tinned Annealed Copper Wire (IEC 60228)
-
Available Cross-Sections: 0.75 mm² to 300 mm²
-
Core Configurations: 1 to 37 Cores

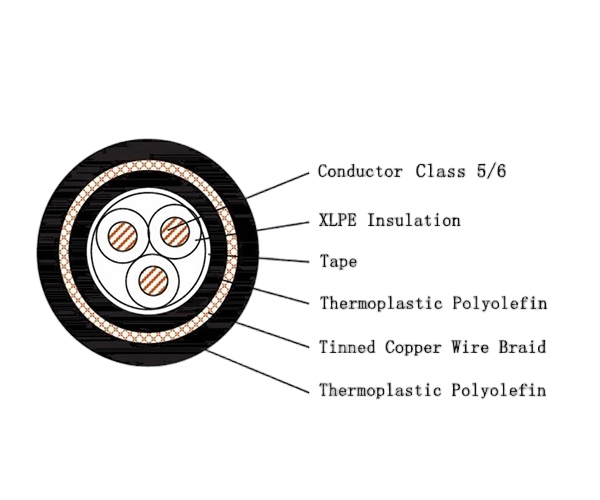

Cable Construction & Materials (Code: CJPFR86/SC)
| Item | Code | Material / Description |
|---|---|---|
| Conductor | - | Class 5/6 (R) Tinned Annealed Copper Wire (High Flexibility) |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 8 | Tinned or Plain Copper Wire Braid |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) |
| Sheath Color | - | Standard Black (Other Colors Available) |
| Flammability Class | SC | Halogen Free, Low Smoke, Flame Retardant |
Key Performance Characteristics
-
High Flexibility & Durability: Fine-stranded Class 5/6 conductors ensure excellent flexibility for easy installation in tight spaces and cable trays. The dual-sheathed design offers enhanced mechanical protection.
-
Comprehensive Flame Safety: Complies with IEC 60332-1 and IEC 60332-3-22 for flame retardancy. The halogen-free (IEC 60754) and low-smoke (IEC 61034) materials minimize corrosive gas emission and smoke density in fire situations.
-
Enhanced Shielding & Protection: Tinned copper wire braid armor provides effective electromagnetic compatibility (EMC) shielding and mechanical resilience against abrasion and impact.
-
Corrosion & Environmental Resistance: The tinned copper armor and halogen-free polyolefin sheaths offer good resistance to marine atmospheres, oils, and chemicals.
-
Thermal Stability: XLPE insulation maintains reliable electrical performance and physical properties at temperatures up to 90°C.
Standards & Compliance
This flexible cable is manufactured in accordance with key international marine and safety standards:
-
IEC 60092-350, 353 (General construction and tests)
-
IEC 60092-360 (Insulation and sheath materials)
-
IEC 60332-1 & IEC 60332-3-22 (Flame retardancy tests)
Typical Applications
This cable is ideally suited for flexible and fixed installations requiring extra mechanical protection in:
-
Marine & Offshore: Flexible power, lighting, and control circuit connections in shipboard switchboards, control panels, instrumentation systems, and on offshore oil & gas platforms.
-
Industrial: Robust yet flexible wiring in environments with movement, vibration, or complex routing needs, such as in power plants, chemical processing units, and mining equipment.
