Product Overview
The CJPFP/NC is a specialized, unarmored fire resistant (FR) marine power cable, designed for critical circuit integrity in protected installations where superior flexibility and reduced weight are essential. Its core technology features a Mica Glass Tape + XLPE composite insulation system, certified to IEC 60331 to ensure continued operation during a fire. Encased in a Halogen-Free (LSZH) inner sheath and equipped with a collective copper screen, this cable provides the ultimate safety combination: fire survival capability, low smoke and zero halogen emission, and EMI protection, all in a lightweight and easy-to-install design for cable trays, conduits, and enclosed spaces.
Key Features & Benefits
-
Certified Fire Resistance (IEC 60331): Ensures vital emergency circuits (e.g., lighting, alarms, communications) remain operational for a specified duration under direct flame exposure, which is critical for life safety and evacuation.
-
Fire-Survival Core Construction: The Mica Glass Tape layer over XLPE insulation forms a robust, heat-resistant barrier that maintains electrical insulation at extreme temperatures, preventing circuit failure during a fire event.
-
Superior Fire Safety (LSZH): Complies with IEC 60754 (Halogen Free) and IEC 61034 (Low Smoke), dramatically reducing the emission of corrosive/toxic gases and smoke density to facilitate safer evacuation and protect sensitive equipment.
-
Lightweight & Highly Flexible: The unarmored (no metallic armor) construction offers excellent flexibility, ease of handling, and reduced overall weight, making it ideal for installation in cable trays, ladders, and conduits.
-
Essential EMI Shielding: The integrated collective copper screen protects against electromagnetic interference, ensuring signal integrity for power and sensitive control circuits in electrically noisy environments.

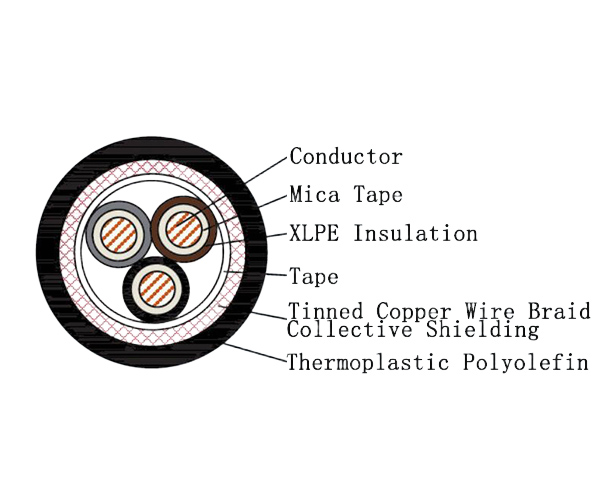

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Mica Glass Tape + XLPE Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) - Halogen Free, Low Smoke |
| Screen | P | Collective Copper Screen |
| Flammability Class | NC | Halogen Free, Low Smoke, Fire Resistant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Thermoplastic Polyolefin (SHF1) |
| Screen | Collective Copper Screen |
| Armour | None (Unarmored) |
| Fire Resistance | IEC 60331 |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Halogen Content | IEC 60754-1 (Halogen Free) |
| Smoke Density | IEC 61034-2 (Low Smoke) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is manufactured to the highest international standards for fire safety, marine application, and material performance:
-
IEC 60092-350, 353: Electrical installations in ships – Design.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60331: Tests for fire resistant characteristics.
-
IEC 60332-1 & -3-22: Tests for flame retardancy.
-
IEC 60754-1: Test on gases evolved during combustion (Halogen Free).
-
IEC 61034-2: Measurement of smoke density (Low Smoke).
Typical Applications
-
Marine & Offshore: Essential safety and critical circuits within protected cable trays, conduits, or enclosures on passenger ships, ferries, and offshore platforms. Ideal for emergency lighting, fire alarm systems, public address systems, and control circuits for safety equipment where circuit integrity during fire is mandated and mechanical protection is provided by the installation method.
-
Critical Infrastructure & Buildings: Power supply for life-safety systems in public buildings, hospitals, tunnels, airports, data centers, and industrial control rooms, particularly in areas where flexible, lightweight, and fire-survival cabling is required for fixed installations.
