Product Overview
The CJPFP/SC is a flexible and reliable unarmored marine power cable, designed for fixed installations where excellent fire safety and EMI protection are required, without the need for additional mechanical armor. It features XLPE insulation for stable electrical performance and a halogen-free, flame-retardant inner sheath to ensure safety in confined spaces. Its collective copper screen provides effective protection against electromagnetic interference. This lightweight and flexible cable is ideal for use in protected cable trays, conduits, or enclosed spaces within marine and industrial settings.
Key Features & Benefits
-
Enhanced Flexibility & Lightweight: The unarmored (no metallic armor) construction offers superior flexibility and ease of installation in trays, conduits, and tight spaces, reducing overall weight.
-
Critical Fire Safety: Utilizes halogen-free, low-smoke (LSZH) sheath materials that minimize toxic/corrosive fume emission and reduce smoke opacity during a fire, crucial for personnel safety.
-
Reliable Electrical Performance: XLPE (Cross-Linked Polyethylene) insulation ensures long-term operational stability at temperatures up to 90°C, with excellent dielectric properties.
-
Effective EMI Shielding: Integrated collective copper screen protects power and control signals from electromagnetic interference, ensuring system integrity.
-
Cost-Effective Solution: Provides essential safety and shielding features for applications where the superior mechanical protection of armored cables is not necessary.

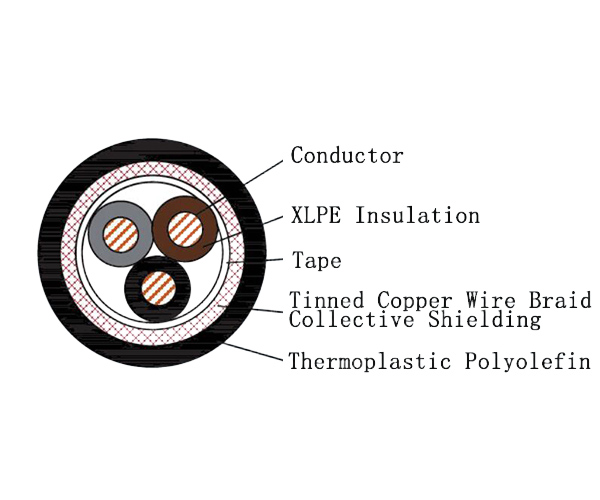

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) - Halogen Free, Low Smoke |
| Screen | P | Collective Copper Screen |
| Flammability Class | SC | Halogen Free, Low Smoke, Flame Retardant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | Thermoplastic Polyolefin (SHF1) |
| Screen | Collective Copper Screen |
| Armour | None (Unarmored) |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
This cable is designed and manufactured in compliance with the following international standards:
-
IEC 60092-350, 353: Electrical installations in ships – General construction and test methods.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60332-1: Test for vertical flame propagation for a single wire/cable.
-
IEC 60332-3-22: Test for vertical flame spread of bunched cables – Category A.
Typical Applications
-
Marine & Offshore: Power, lighting, and control circuits within protected enclosures, cable trays, or conduits on ships, offshore platforms, and in accommodation areas where fire safety is paramount and mechanical protection is provided by the installation method.
-
Industrial & Plant: General power distribution in controlled industrial environments such as power plants, chemical processing facilities (in non-harsh zones), and commercial buildings where EMI protection and fire safety are required, and cables are not exposed to significant mechanical risk.
