Product Overview
The CJPFP96/SC represents a premium-grade, fully protected marine power cable designed for the most severe mechanical and environmental conditions. It combines the ultimate in cable protection with essential fire safety features. Its construction features a dual-layer sheath of halogen-free thermoplastic polyolefin (SHF1) for superior chemical and abrasion resistance, complemented by a rugged braided armor of galvanized steel wires for maximum tensile and crush resistance. This shielded cable is engineered to deliver unfailing power supply in extreme marine and industrial settings where durability is non-negotiable.
Key Features & Benefits
-
Maximum Mechanical Protection: Features a high-strength galvanized steel wire braid armor for superior resistance against crushing, impact, and pulling forces, combined with a double-layer SHF1 sheath for excellent environmental sealing.
-
Comprehensive Fire Safety: All sheath materials are halogen-free and low-smoke (LSZH), significantly reducing toxic gas emission and smoke density in fire scenarios to enhance personnel safety and equipment protection.
-
Robust Environmental Defense: The dual-sheath design provides an exceptional barrier against moisture, oils, chemicals, and sunlight, ensuring long-term reliability in exposed or harsh locations.
-
Stable Electrical Performance: XLPE insulation offers high dielectric strength and thermal stability for continuous operation at 90°C, ensuring dependable power transmission.
-
EMI/RFI Immunity: The integrated collective copper screen effectively mitigates electromagnetic and radio-frequency interference, safeguarding signal integrity for sensitive equipment.

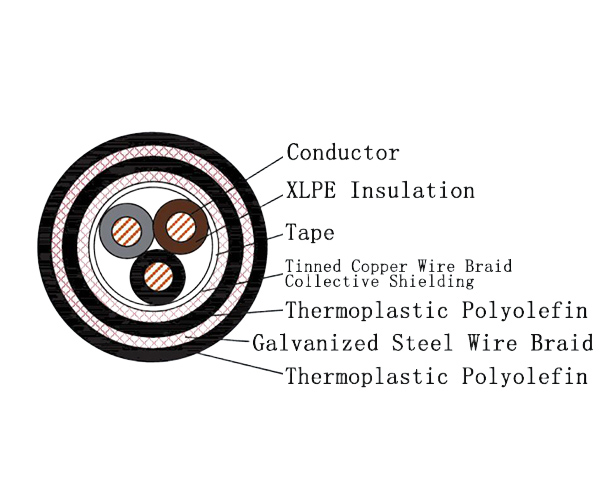

Cable Construction
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded Annealed Copper Wire (IEC 60228) |
| Insulation | J | Cross-Linked Polyethylene (XLPE) |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Screen | P | Collective Copper Screen |
| Armour | 9 | Braid of Galvanized Steel Wires |
| Outer Sheath | 6 | Thermoplastic Polyolefin (SHF1) - Halogen Free, Low Smoke |
| Flammability Class | SC | Halogen Free, Low Smoke, Flame Retardant |
| Sheath Colour | / | Standard Black (Other colours on request) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV |
| Maximum Operating Temperature | 90°C |
| Conductor | Plain or Tinned Annealed Copper, Stranded |
| Insulation | Cross-Linked Polyethylene (XLPE) |
| Inner & Outer Sheath | Thermoplastic Polyolefin (SHF1) |
| Screen | Collective Copper Screen |
| Armour | Braided Galvanized Steel Wires |
| Flame Retardancy | IEC 60332-1 & IEC 60332-3-22 (Category A) |
| Core Range | 1 to 37 cores |
| Cross-Sectional Area | 0.75 mm² to 300 mm² |
Standards & Approvals
Manufactured to meet the stringent requirements of international marine and safety standards:
-
IEC 60092-350, 353: Electrical installations in ships – General construction and test methods.
-
IEC 60228: Conductors of insulated cables.
-
IEC 60092-360: Insulating and sheathing materials.
-
IEC 60332-1: Test for vertical flame propagation for a single wire/cable.
-
IEC 60332-3-22: Test for vertical flame spread of bunched cables – Category A.
Typical Applications
-
Marine & Offshore: Critical power feeds, main distribution circuits, and essential services on ships, drilling rigs, and production platforms where cables are subject to severe mechanical stress and harsh corrosive environments.
-
Heavy Industrial: Primary power supply and distribution in extreme industrial sectors such as mining (especially in shafts or open pits), heavy metallurgy, large-scale material handling, and port machinery where maximum cable robustness is required.
