Product Overview
The CJPJ95/SC XLPE Insulated Armored Marine Power Cable represents a premium safety and durability solution for the most demanding fixed installations. This cable combines the high electrical performance of XLPE insulation with the ultimate protection of a double-layer cross-linked polyolefin (SHF2) sheath and heavy-duty galvanized steel wire braid armor. Designed to deliver superior flame retardancy (IEC 60332), exceptional resistance to mechanical stress, environmental hazards, and minimal smoke and toxic gas emission, it is built for critical circuits requiring maximum long-term reliability.
Key Applications
-
Marine & Offshore: Essential for main power feeders, critical lighting, and control systems in exposed decks, engine rooms, pump rooms, and other high-risk areas of ships, oil rigs, and FPSOs where durability and fire safety are paramount.
-
Extreme Industrial & Infrastructure: The ideal choice for power plants, chemical and petrochemical facilities, mining operations, and heavy industrial complexes where cables face severe mechanical, chemical, and environmental challenges.
Compliance & Standards
This cable is manufactured in full compliance with international marine and safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

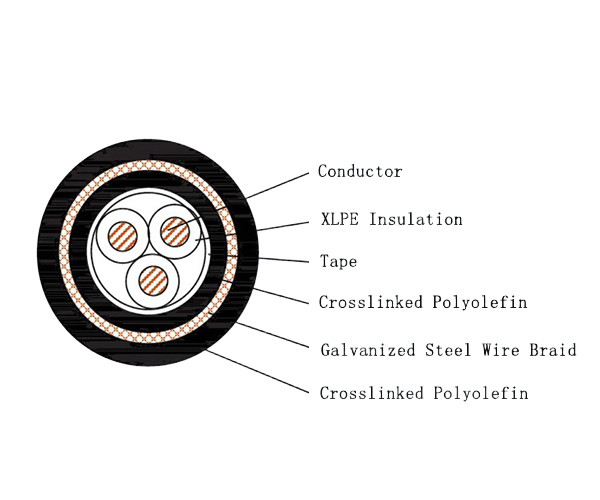

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulated |
| Inner Sheath | PJ | Cross-linked Polyolefin (SHF2 - LSZH) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 5 | Cross-linked Polyolefin (SHF2 - LSZH) |
| Outer Sheath Color | / | Standard Black (Other colors available) |
| Flammability | SC | Halogen Free, Low Smoke, Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
