Product Overview
The CJPF/SC XLPE Insulated Marine Power Cable is a non-armored, low-smoke zero-halogen (LSZH) cable designed for general power and control circuits where enhanced fire safety and environmental protection are priorities. It features XLPE (Cross-linked Polyethylene) insulation for reliable electrical performance and a durable thermoplastic polyolefin (SHF1) outer sheath that provides flame retardancy (IEC 60332) while minimizing smoke and corrosive gas emissions in the event of a fire. This flexible and lightweight design is ideal for standard fixed installations.
Key Applications
-
Marine & Offshore: Suitable for power, lighting, and general control systems within protected cable trays, conduits, or trunking on ships, oil platforms, and offshore structures, especially in accommodation and service areas.
-
General Industrial & Commercial: Applicable in a wide range of settings including power plants, commercial buildings, and industrial facilities where circuits require flame-retardant, low-smoke, and halogen-free performance without the need for mechanical armor.
Compliance & Standards
This cable is designed and manufactured in accordance with relevant international marine and safety standards:
-
Design: IEC 60092-350, IEC 60092-353
-
Conductor: IEC 60228
-
Insulation & Sheath: IEC 60092-360
-
Flame Retardancy: IEC 60332-1, IEC 60332-3-22

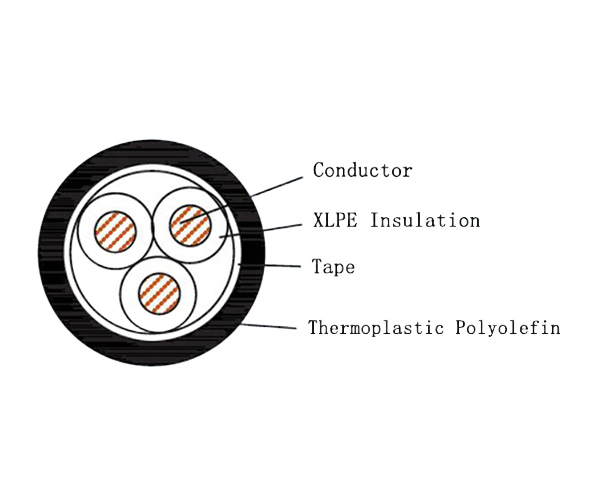

Construction & Materials
| Item | Code | Material / Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned or Plain Stranded, Annealed Copper Wire |
| Insulation | J | XLPE (Cross-linked Polyethylene) Insulated |
| Sheath | PF | Thermoplastic Polyolefin (SHF1 - Low Smoke Halogen Free) |
| Sheath Color | / | Standard Black (Other colors available) |
| Flammability | SC | Halogen Free, Low Smoke, Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1 kV
-
Maximum Conductor Temperature: 90°C
-
Available Cross-Section: 0.75 mm² to 300 mm²
-
Number of Cores: 1 to 37 Cores
