CEPF90/SC EPR Insulated Low-Smoke Halogen-Free Armored Marine Power Cable
Product Overview
CEPF90/SC marine power cable combines EPR insulation with low-smoke halogen-free (LSZH) SHF1 sheathing and robust galvanized steel wire armor, providing superior mechanical protection and environmental safety for demanding marine and offshore applications.
Key Applications
-
Power, lighting and control systems for offshore structures
-
Oil platforms and marine vessels
-
Enclosed marine spaces requiring low smoke and halogen-free materials
-
Metallurgy and chemical industry applications
-
Power plants and mining operations with strict fire safety requirements
Compliance & Standards
-
IEC 60092-350, 353 - Marine cable design standards
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 - Flame retardant (single cable)
-
IEC 60332-3-22 - Flame retardant (bunched cables)

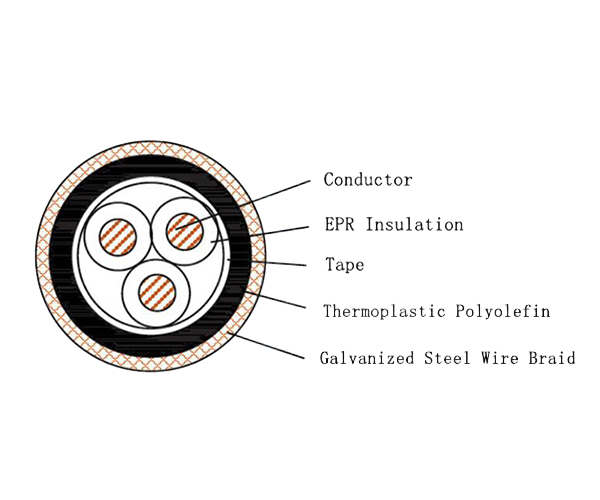

Cable Construction & Coding
| Component | Code | Material/Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulated |
| Inner Sheath | PF | Thermoplastic Polyolefin (SHF1) |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Sheath Color | / | Black or other Color |
| Flammability | SC | Halogen Free Low Smoke Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1kV
-
Working Temperature: 90℃
-
Cross Section Range: 0.75mm² to 300mm²
-
Number of Cores: 1 to 37 cores
-
Insulation Material: EPR (Ethylene Propylene Rubber)
-
Inner Sheath Material: Thermoplastic Polyolefin (SHF1)
-
Armor Type: Galvanized Steel Wire Braid
-
Outer Sheath: None
-
Flame Retardancy: IEC 60332-1 & IEC 60332-3-22 compliant
-
Special Feature: Halogen Free Low Smoke Flame Retardant
