CEF/SA EPR Insulated Marine Power Cable
Product Overview
CEF/SA marine power cable features EPR insulation and protective PCP sheath, designed for reliable power transmission in demanding marine, offshore, and industrial environments. Engineered to meet international marine standards for safety and performance.
Key Applications
-
Power, lighting and control systems for offshore structures
-
Oil platforms and marine installations
-
Metallurgy and chemical industry applications
-
Power plants and mining operations
-
Industrial installations requiring flame retardant cables
Compliance & Standards
-
IEC 60092-350, 353 - Marine cable design standards
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 - Flame retardant (single cable)
-
IEC 60332-3-22 - Flame retardant (bunched cables)

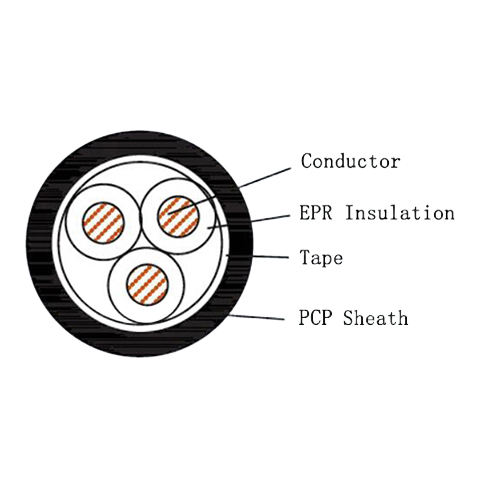

Cable Construction & Coding
| Component | Code | Material/Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulated |
| Sheath | F | PCP |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1kV
-
Working Temperature: 90℃
-
Cross Section Range: 0.75mm² to 300mm²
-
Number of Cores: 1 to 37 cores
-
Insulation Material: EPR (Ethylene Propylene Rubber)
-
Sheath Material: PCP
-
Flame Retardancy: IEC 60332-1 & IEC 60332-3-22 compliant
