CEF92/SA EPR Insulated Armored Marine Power Cable
Product Overview
CEF92/SA marine power cable combines EPR insulation with robust galvanized steel wire armor and protective PVC outer sheath, providing superior protection in demanding marine and offshore environments. Engineered to meet international marine standards for maximum safety and reliability.
Key Applications
-
Power, lighting and control systems for offshore structures
-
Oil platforms and marine vessels
-
Metallurgy and chemical industry applications
-
Power plants and mining operations
-
Industrial installations requiring flame retardant cables
Compliance & Standards
-
IEC 60092-350, 353 - Marine cable design standards
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 - Flame retardant (single cable)
-
IEC 60332-3-22 - Flame retardant (bunched cables)

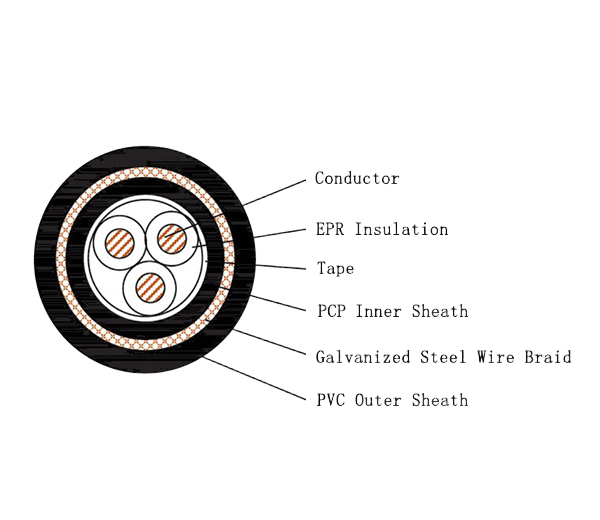

Cable Construction & Coding
| Component | Code | Material/Description |
|---|---|---|
| Series Code | C | Marine Power Cable |
| Conductor | / | Tinned/Plain Stranded, Annealed Copper Wire |
| Insulation | E | EPR Insulated |
| Inner Sheath | F | PCP |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Outer Sheath |
| Outer Sheath Color | / | Black or other Color |
| Flammability | SA | Bunched Cables Flame Retardant |
Technical Specifications
-
Rated Voltage: 0.6/1kV
-
Working Temperature: 90℃
-
Cross Section Range: 0.75mm² to 300mm²
-
Number of Cores: 1 to 37 cores
-
Armor Type: Galvanized Steel Wire Braid
-
Insulation Material: EPR (Ethylene Propylene Rubber)
-
Inner Sheath Material: PCP
-
Outer Sheath Material: PVC
-
Flame Retardancy: IEC 60332-1 & IEC 60332-3-22 compliant
