P3 RFOU 6/10kV Offshore Power Cable | NEK 606 Flame Retardant LSOH HV Marine Cable

Offshore Power Cable NEK 60640
Description

Product Overview

P3 RFOU 6/10KV Offshore Power Cable is a NEK 606 standard compliant high-voltage cable designed for critical power transmission in offshore environments. Featuring EPR insulation, tinned copper braid armour, and halogen-free LSOH construction, this cable delivers superior performance and safety for demanding marine applications.

Applications

  • Drilling ships & drilling platforms (Jack-up, Semi-submersible)

  • Production Platforms (TLP, Semi-submersible, SPAR, Fixed platforms)

  • FPSO/FSO vessels

  • Offshore high-voltage power distribution

  • Marine vessel electrical networks

  • Critical offshore power transmission systems

Key Features

  • Flame Retardant Construction: Enhanced fire safety for offshore applications

  • Low Smoke Halogen Free: Minimal toxic emissions during fire situations

  • Double Shielding: Conductor and insulation screens for optimal performance

  • Armoured Protection: Tinned copper wire braid for mechanical durability

  • EPR Insulation: Ethylene Propylene Rubber for reliable high-voltage performance

  • NEK 606 Certified: Compliant with offshore marine cable standards

Standards Compliance

  • NEK 606 - Offshore and marine cable standard

  • IEC 60228 - Conductors of insulated cables

  • IEC 60092-351 - Insulating materials for shipboard cables

  • IEC 60092-350 - Shipboard power cables

  • IEC 60092-354 - Sheathing materials for shipboard cables

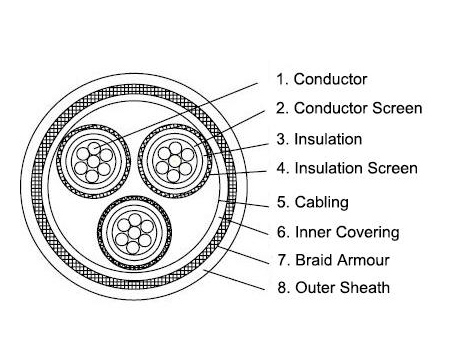

Construction Details

P3 RFOU 6/10kV Offshore Power Cable | NEK 606 Flame Retardant LSOH HV Marine Cable

  1. Conductor
    Circular tinned stranded copper Class 2 in accordance with IEC 60228

  2. Conductor Screen
    Semi-conducting material

  3. Insulation
    Ethylene Propylene Rubber (EPR) per IEC 60092-351

  4. Insulation Screen
    Semi-conducting material and tinned copper wire braid

  5. Cabling
    Cores are laid up together and then wrapped by polyester tape

  6. Inner Covering
    Halogen-free compound

  7. Braid Armour
    Tinned copper wire braid in accordance with IEC 60092-350

  8. Outer Sheath
    Halogen-free thermoset compound in accordance with type SHF2 (RED) per IEC 60092-354

Additional Features

  • Corrosion Resistant: Tinned copper components for marine environments

  • High Voltage Rated: Suitable for 6/10kV applications

  • Safety Compliant: Meets offshore fire safety requirements

  • Durable Construction: Designed for harsh offshore conditions

  • Red Outer Sheath: Easy identification per IEC standards
