Product Overview
RG11 Armoured Coaxial Cable provides a high-performance 75Ω solution specifically engineered for shipboard installation and indoor marine environments. Featuring a large 14AWG solid bare copper conductor, dual shielding, and tinned copper braid armour, this cable delivers superior low-loss signal transmission for demanding marine video and data applications.
Key Features
-
Low Attenuation Design: Optimized for minimal signal loss over long distances
-
Large Conductor: 14AWG solid bare copper for enhanced signal integrity
-
Dual Shielding: Al/Polyester tape and tinned copper braid for superior EMI protection
-
Marine Grade Armouring: Tinned copper braid for mechanical durability
-
Fire Safety Compliant: Low smoke zero halogen (LSOH) construction throughout
-
High Velocity: 83% velocity of propagation for efficient signal transmission
Applications
-
Shipboard video distribution systems
-
Marine CCTV and surveillance networks
-
Offshore platform broadcast systems
-
Long-distance marine data transmission
-
Shipboard antenna and signal distribution
-
Marine television and multimedia systems
Standards Compliance
-
IEC 60092-350 - Shipboard cable standards
-
IEC 60332-3-22 - Flame spread test for bunched cables
-
IEC 60754-1,2 - Halogen gas emission tests
-
IEC 61034-1,2 - Smoke density measurement
-
NEK 606:2004 - Offshore and marine cable standard

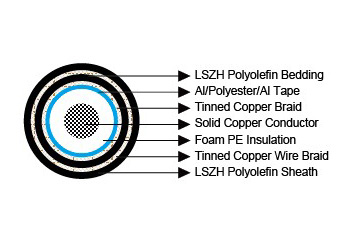

Construction Details
-
Conductors: 14AWG solid bare copper
-
Insulation: Foam polyethylene (PE)
-
Shielding 1: Aluminium/Polyester/Aluminium tape
-
Shielding 2: Tinned copper braid
-
Bedding: Low smoke halogen-free polyolefin, black
-
Armour: Tinned copper wire braid
-
Outer Sheath: Low smoke halogen-free polyolefin
Electrical Characteristics
| Parameter | Value | Unit |
|---|---|---|
| AWG | 14 | - |
| Nominal Conductor Diameter | 1.6 | mm |
| Impedance | 75 ± 5 | Ω |
| Capacitance | 53.5 | pF/m |
| Velocity of Propagation | 83 | % |
| Conductor DCR | 8.5 | Ω/km |
| Shield DCR | 12.1 | Ω/km |
| Inductance | 0.32 | μH/m |
| Time Delay | 4 | ns/m |
Attenuation Characteristics
| Frequency | Attenuation |
|---|---|
| 100 MHz | 4.5 dB/100m |
| 270 MHz | 7.6 dB/100m |
| 540 MHz | 10.8 dB/100m |
| 750 MHz | 12.8 dB/100m |
| 1000 MHz | 14.8 dB/100m |
Mechanical & Thermal Properties
-
Bending Radius: 15 × Outer Diameter
-
Temperature Range: -30℃ to +75℃
-
Installation: Suitable for fixed shipboard installations
-
Durability: Heavy-duty armoured construction for marine environments
Dimensions and Weight
| Parameter | Value | Unit |
|---|---|---|
| Nominal Inner Conductor Diameter | 1.6 | mm |
| Nominal Insulation Thickness | 2.7 | mm |
| Nominal Sheath Thickness | 1.7 | mm |
| Nominal Overall Diameter | 15.0 | mm |
| Nominal Weight | 353 | kg/km |
