PROFIBUS Marine Cable 1 Pair 22 AWG | LSOH SHF2 Shipboard Digital Signal Cable

Product Overview

This PROFIBUS 1 Pair 22 AWG cable is specifically designed for fixed installation on ships and vessels, providing reliable connection for digital signals up to 12MBd in marine automation systems. Featuring LSOH SHF2 outer sheath and dual shielding, it ensures optimal performance and safety in shipboard environments.

Key Features

• Marine Optimized: Designed for fixed shipboard installation

• High-Speed Capable: Supports digital signals up to 12MBd

• Enhanced Shielding: Dual-layer aluminium/polyester tape and tinned copper braid

• Fire Safety Compliant: LSOH SHF2 outer sheath

• Easy Installation: FRNC easy strip layer for quick termination

• Standard Impedance: 150Ω characteristic impedance for PROFIBUS networks

Applications

• Shipboard PROFIBUS communication systems

• Marine automation and control networks

• Digital signal transmission on vessels

• Offshore platform control systems

• Fixed installations in marine environments

• Ship automation data networks

Standards Compliance

• IEC 60332-1&2 - Flame propagation tests

• IEC 60754-1/2 - Halogen acid gas emission tests

• IEC 61034 - Smoke density measurement

• IEC 60092 - Shipboard cable standards

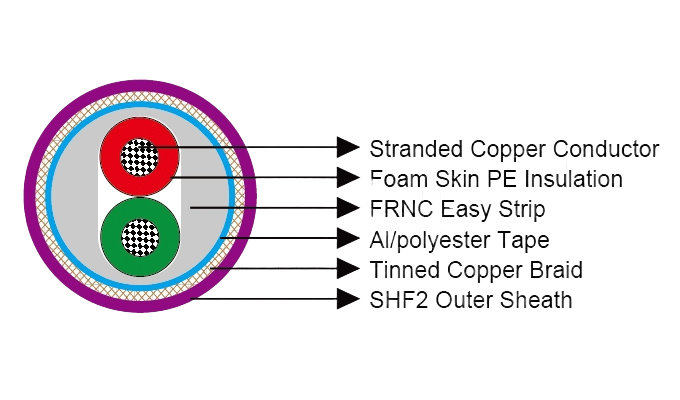

Construction Details

• Conductors: Stranded bare copper 22 AWG

• Insulation: Foam skin polyethylene (PE)

• Easy Strip: Thermoplastic copolymer (FRNC)

• Overall Screen 1: Aluminium/polyester tape

• Overall Screen 2: Tinned copper braid

• Outer Sheath: Low Smoke Zero Halogen (SHF2)

Core Identification

• Core 1: Red

• Core 2: Green

Electrical Properties

Attenuation Characteristics

Mechanical & Thermal Properties

• Bending Radius for Fixed Installations: 10 × Outer Diameter

• Temperature Range: -25℃ to +80℃

• Installation: Suitable for fixed shipboard installations

• Compatibility: Designed for PROFIBUS network requirements

Dimensions and Weight
