JIS C 3410 compliant shipboard cables featuring overall tinned copper braid shield and 85°C EPR insulation. These flame retardant cables are designed for marine control and instrumentation systems with comprehensive electromagnetic protection.

Technical Standards & Certifications

  • Primary Standard: JIS C 3410-1999

  • Fire Safety: IEC 60332-1

  • Flame Retardant: IEC 60332-3 Cat.A (for FA-type)

  • Rated Voltage: 250V

Cable Construction & Materials

JIS C 3410 MPYS MPYCS MPYCYS Shipboard Cables | Overall Shield EPR Insulation 250V

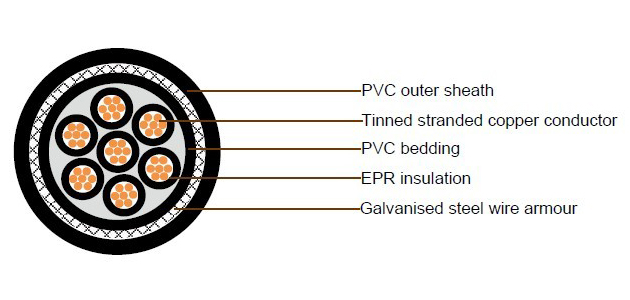

[FA-] MPYS, MPYCS, MPYCYS Construction

Component Code Specification
Conductor M Tinned annealed stranded copper, class 2 per IEC 60228
Insulation P 85°C EPR as per JIS C 3410
Cabling Insulated conductors cabled with flame retardant fillers
Overall Shield S Tinned copper wire braid
Bedding Y PVC as per JIS C 3410
Armor C Galvanized steel wire braid
Sheath Y PVC as per JIS C 3410

Core Identification & Color Coding

  • Core Identification: Black number on white insulation

  • Outer Sheath Color: Black

Technical Specifications

250V (FA-) MPYS Specifications

No. of Cores Conductor Size mm² Conductor Construction Insulation Thickness mm Shield Wire Dia mm Bedding Thickness mm Nom. Overall Dia mm Tolerance mm Cable Weight kg/km
2 1 7/0.43 1.29 0.7 0.14 9.4 0.4 135
4 1 7/0.43 1.29 0.7 0.14 10.6 0.5 190
7 1 7/0.43 1.29 0.7 0.14 12.6 0.6 270
12 1 7/0.43 1.29 0.7 0.16 16.3 0.7 430
19 1 7/0.43 1.29 0.7 0.16 19.3 0.8 600
27 1 7/0.43 1.29 0.7 0.18 23.0 1.0 840
37 1 7/0.43 1.29 0.7 0.18 25.7 1.1 1070
44 1 7/0.43 1.29 0.7 0.18 28.9 1.2 1290

250V (FA-) MPYCS Specifications

No. of Cores Conductor Size mm² Conductor Construction Steel Wire Dia mm Nom. Overall Dia mm Tolerance mm Cable Weight kg/km
2 1 7/0.43 0.3 10.7 0.4 205
4 1 7/0.43 0.3 11.9 0.5 260
7 1 7/0.43 0.3 13.9 0.6 355
12 1 7/0.43 0.3 17.6 0.7 540
19 1 7/0.43 0.3 20.6 0.8 735
27 1 7/0.43 0.3 24.3 1.0 995
37 1 7/0.43 0.3 27.0 1.1 1240
44 1 7/0.43 0.3 30.2 1.2 1480

250V (FA-) MPYCYS Specifications

No. of Cores Conductor Size mm² Conductor Construction Steel Wire Dia mm Covering Thickness mm Nom. Overall Dia mm Tolerance mm Cable Weight kg/km
2 1 7/0.43 0.3 0.9 12.7 0.5 255
4 1 7/0.43 0.3 0.9 13.9 0.6 315
7 1 7/0.43 0.3 0.9 15.9 0.6 420
12 1 7/0.43 0.3 1.0 19.8 0.8 625
19 1 7/0.43 0.3 1.1 23.0 0.9 850
27 1 7/0.43 0.3 1.2 26.9 1.1 1140
37 1 7/0.43 0.3 1.3 29.8 1.2 1410
44 1 7/0.43 0.3 1.4 33.2 1.3 1680

Features & Benefits

  • Overall Shield Design: Tinned copper wire braid provides comprehensive EMI protection

  • High Temperature Rating: 85°C EPR insulation for reliable thermal performance

  • Marine Grade Construction: Tinned annealed copper conductors per IEC 60228

  • Flame Retardant: Compliant with IEC 60332-1 and IEC 60332-3 Cat.A standards

  • Armored Protection: Galvanized steel wire braid for mechanical durability

  • Multiple Configurations: 2 to 44 cores available for various control applications

  • Corrosion Resistant: All materials selected for harsh marine environments

Application Areas

  • Shipboard control and instrumentation systems

  • Marine automation with EMI sensitive environments

  • Naval vessel electrical control circuits

  • Offshore platform control and monitoring systems

  • Critical marine applications requiring overall shielding

*Note: All specifications are in accordance with JIS C 3410-1999 standards. Cable parameters may vary within manufacturing tolerances. These cables feature overall shielding for comprehensive electromagnetic compatibility in sensitive marine control applications.*
