Product Overview
Our Festoon Cable for Frequency Converter Drives is specifically engineered for high-stress applications in movable machinery and crane systems. Designed to withstand frequent bending and higher mechanical stress, this cable ensures reliable power transmission for frequency converter drives in demanding industrial environments.
Key Applications
-
Cable vehicles and door style lifts
-
Movable lifts and platform transports
-
Machine tools and movable transport systems
-
Frequency converter drive applications
-
Motor lead connections under higher mechanical stress
-
Frequently bending environments in industrial settings
Technical Specifications
-
Rated Voltage: U₀/U 0.6/1 kV
-
Test AC Voltage: 2.5 kV for 5 minutes
-
Temperature Rating:
-
Permissible continuous temperature: 90°C
-
Minimum operating temperature: -35°C outdoor
-
-
Environmental Resistance: Ozone resistant, UV resistant, and humidity resistant
-
Chemical Resistance: Oil resistant performance
-
Conductor: Tinned copper with braided layer (density >80%)

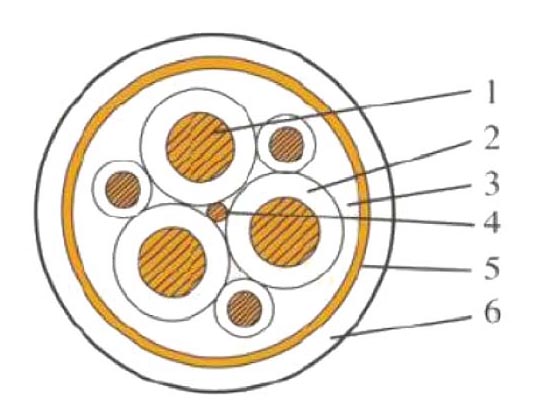

Cable Construction
-
Tinned copper conductor
-
Insulation: EPR rubber compound
-
Inner sheath: SBR rubber compound
-
Filler
-
Screen: Tinned copper braided
-
Outer sheath: CR compound
Color Coding: Primary cores individually colored in black, blue, and brown; ground core in yellow/green
Product Code System
-
G: Cable for Port machinery
-
YD: Cable for Movable working condition
-
E: EPR Insulation
-
F: CR Sheath
-
R: Flexible Conductors
Technical Specifications Table
| Cross Section (mm²) | Conductor Construction (Tinned Copper) | Max. OD of Cable (mm) | Approx Weight (kg/km) | Max. Load (N) |
|---|---|---|---|---|
| 3×4+3×1.5 | 3×56/0.30+3×48/0.20 | 23.0 | 751 | 180 |
| 3×6+3×2 | 3×84/0.30+3×64/0.20 | 24.5 | 895 | 360 |
| 3×10+3×4 | 3×84/0.40+3×56/0.30 | 30.0 | 1298 | 450 |
| 3×16+3×4 | 3×126/0.40+3×56/0.30 | 32.0 | 1565 | 720 |
| 3×25+3×6 | 3×196/0.40+3×84/0.30 | 37.0 | 2214 | 1125 |
| 3×35+3×6 | 3×276/0.40+3×84/0.30 | 40.0 | 2695 | 1575 |
| 3×50+3×10 | 3×396/0.40+3×84/0.40 | 44.8 | 3601 | 2250 |
| 3×70+3×10 | 3×380/0.49+3×84/0.40 | 49.0 | 4350 | 3150 |
| 3×95+3×16 | 3×513/0.49+3×126/0.40 | 54.0 | 5250 | 4275 |
Features & Benefits
-
High Flexibility: Designed for frequent bending and movable applications
-
Temperature Resistant: Stable performance from -35°C to 90°C
-
Environmental Protection: Excellent ozone, UV, and humidity resistance
-
EMC Performance: Tinned copper braided screen for frequency converter applications
-
Mechanical Durability: Withstands higher mechanical stress in industrial environments
-
Oil Resistant: Suitable for applications with oil exposure
-
Color Coded: Easy identification with standard color coding
Compliance & Standards
-
Rated for frequency converter drive applications
-
Suitable for outdoor use in harsh environments
-
Designed for higher mechanical stress conditions
-
Compatible with industrial movable machinery systems
Note: All technical specifications are subject to manufacturing tolerances. Consult our engineering team for specific application requirements.
