SHD-GC Shield Portable Mining Power Cable, Trailing Mining Cable, EPR TPU Jacket

Mining Cables
Description

SHD-GC Shield Portable Mining Power Cable, EPR TPU Jacket, Trailing Mining Cable

Product Overview

The SHD-GC Shield Portable Mining Power Cable is specifically engineered for demanding trailing cable applications in AC mining equipment operations. Featuring robust construction with a ground-check conductor for fail-safe monitoring, this cable delivers exceptional flexibility and durability in the most challenging mining environments.

Applications

  • Longwall Shearer Equipment: Compatible with Bretby-type cable handling devices

  • AC Mining Equipment: Low and medium voltage AC circuits requiring shielding

  • Trailing Cable Systems: Mobile mining equipment power supply

  • Fail-Safe Monitoring: Applications where ground-check conductor monitoring is required

  • Industrial Mining: Various portable power applications in mining environments

Features & Benefits

  • Ground-Check Conductor: Integrated monitoring system for enhanced safety in mining operations.

  • Superior Flexibility: Designed for easy handling and trailing applications.

  • Exceptional Durability: Excellent resistance to cuts, impacts, abrasion, and mechanical mistreatment.

  • Broad Temperature Range: Maintains performance across varying operating conditions.

  • Comprehensive Environmental Resistance: Withstands oils, chemicals, moisture, and sunlight.

  • Reinforced Protection: Optional two-layer jacket with fiber reinforcement for maximum mechanical protection.

  • Strong Reliability: Ensures personnel security and low moisture absorption.

  • Chemical Resistance: Superior resistance to acid and alkali substances.

  • Mechanical Resistance: Excellent resistance to blows, collisions, and mechanical tension.

  • Oil, Grease & Abrasion Resistance: Superior performance in harsh mining conditions.

  • Flame Spread & Ozone Resistance: Excellent flame spread and ozone resistance.

  • Sunlight & Moisture Resistance: Superior sunlight and moisture resistance.

  • Flattening & Scratching Resistance: Excellent flattening and scratching resistance.

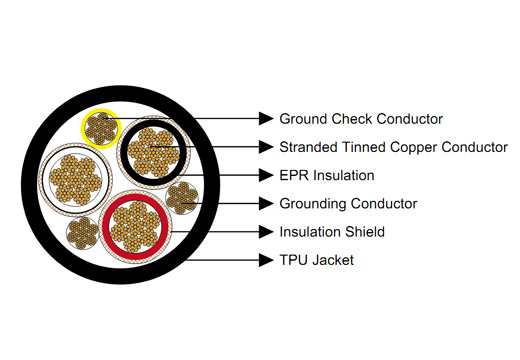

Construction

  • Conductors: Stranded annealed tinned copper conductor

  • Insulation: Ethylene Propylene Rubber (EPR)

  • Insulation Shield: Tinned copper/textile braid

  • Ground Check Conductor: Tinned copper conductor with yellow polypropylene insulation

  • Grounding Conductor: Tinned copper conductor

  • Jacket: Thermoplastic Polyurethane (TPU) Jacket, black

Optional Features:

  • Alternative jacket materials: CPE/CSP/PCP/NBR/PVC available upon request

  • Two-layer jacket with reinforcing fibre between layers available

Technical Data

Temperature Ratings

  • Normal Operation: 90°C

  • Overload Condition: 130°C

  • Short Circuit: 250°C

Performance Properties

  • Strong reliability and personnel security

  • Low moisture absorption

  • Excellent flexibility and mechanical resistance

  • Superior resistance to acid and alkali substances

  • Outstanding performance in high temperature environments

  • Excellent resistance to blows, collisions, and mechanical tension

  • Superior oil, grease, and abrasion resistance

  • Excellent flame spread resistance and ozone resistance

  • Superior sunlight and moisture resistance

  • Excellent flattening and scratching resistance

Standards & Compliance

  • ICEA S-75-381/NEMA WC 58

  • ASTM B 172

  • ASTM B 33

  • CAN/CSA C22.2 No. 96

Ordering Information

To request a quote or place an order, please provide the following information:

  • Product Type: SHD-GC Shield Portable Mining Power Cable

  • Voltage Rating: Low or medium voltage AC (as required)

  • Conductor Size: As required

  • Ground-Check Conductor: Yes (integrated)

  • Jacket Material: TPU (standard); CPE/CSP/PCP/NBR/PVC available upon request

  • Optional Features: Two-layer jacket with reinforcing fibre (if required)

  • Quantity: Total length in meters
