Product Code: CKJV90/NA
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
CKJV90/NA is an armored, fire-resistant marine control cable designed for critical circuit integrity. Featuring XLPE insulation and a built-in mica glass tape barrier, it ensures continued operation during a fire. This version is supplied without an outer sheath, making it ideal for integration into larger cable bundles or for situations where an overall jacket will be applied separately.
Key Features
-
Excellent Fire Resistance: Maintains circuit integrity during a fire, complying with IEC 60331.
-
Flame Retardant: Effectively inhibits the spread of flame (IEC 60332-1 & -3-22).
-
Low Smoke & Zero Halogen (LSZH): Emits minimal smoke and non-corrosive gases for enhanced safety (IEC 60754, IEC 61034).
-
Robust Armored Design: Galvanized steel wire braid provides mechanical protection.
-
No Outer Sheath: Allows for flexible cabling solutions and easier bundling.
Applications
This cable is specifically designed for power, lighting, and control systems in:
-
Marine vessels and offshore oil platforms (e.g., oil platforms)
-
Shipbuilding and offshore engineering
-
Metallurgical, chemical, and power plants
-
Mining and other demanding industrial environments
Standards Compliance
This product is manufactured in accordance with the following international standards:
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)
Construction & Technical Data

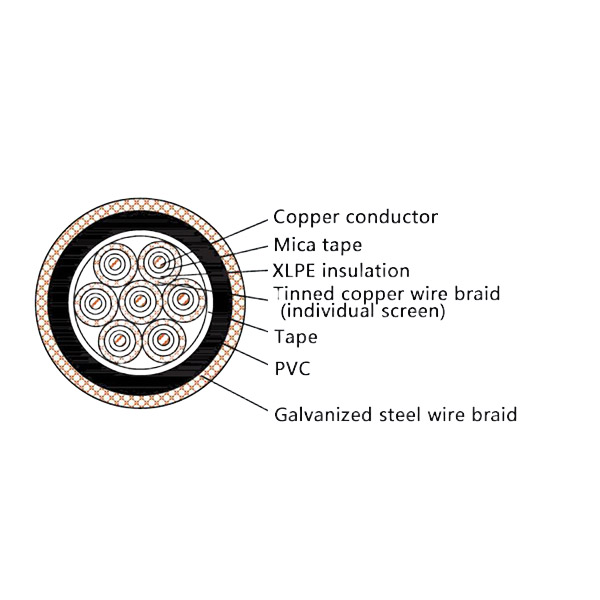

Cable Construction
| Item | Code | Description / Material |
|---|---|---|
| Series Code | CK | Marine & Offshore Control Cable |
| Conductor | - | Tinned or Plain Stranded Annealed Copper Wire |
| Insulation | J | Mica Glass Tape + XLPE Insulation |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 0 | Without Outer Sheath |
| Flammability | NA | Fire Resistant |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Long-term Operating Temperature | 90℃ |
| Core Numbers | 1, 2, 3, 4, 5, 7, 10, 12, 14, 16, 19, 24, 27, 30, 37 Cores |
| Conductor Cross-Section | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Ordering Information
When ordering, please specify the following parameters:
-
Product Code: CKJV90/NA
-
Number of Cores
-
Conductor Cross-Section
-
Length
Example: CKJV90/NA 12x1.5mm²
