CKJV92/NA Fire Resistant Marine Control Cable
Product Code: CKJV92/NA
Rated Voltage: 150/250V
Operating Temperature: Up to 90℃
Product Overview
CKJV92/NA is a fire-resistant, armored marine control cable designed with XLPE insulation and a Low Smoke Zero Halogen (LSZH) sheath. It is engineered for reliable performance in critical circuits on ships, offshore platforms, and in demanding industrial plants where circuit integrity under fire conditions is essential.
Key Features
-
Excellent Fire Resistance: Maintains circuit integrity during a fire (IEC 60331).
-
Flame Retardant: Inhibits the spread of flame (IEC 60332-1 & -3-22).
-
Low Smoke & Zero Halogen (LSZH): Minimizes corrosive gases and smoke density for safer evacuation (IEC 60754, IEC 61034).
-
Robust Armored Design: Galvanized steel wire braid provides superior mechanical protection.
-
Marine & Industrial Grade: Resists harsh environmental conditions, moisture, and oils.
Applications
This cable is suitable for power, lighting, and control systems in:
-
Marine vessels and offshore oil platforms
-
Shipbuilding and offshore engineering
-
Metallurgical, chemical, and power plants
-
Mining and other industrial environments with high safety requirements
Standards Compliance
-
IEC 60092-350, 376 (General Construction & Design)
-
IEC 60228 (Conductors)
-
IEC 60092-360 (Insulation & Sheath)
-
IEC 60331 (Fire Resistance)
-
IEC 60332-1 & IEC 60332-3-22 (Flame Retardant)
-
IEC 60754 (Halogen Free)
-
IEC 61034 (Low Smoke)
Construction & Technical Data

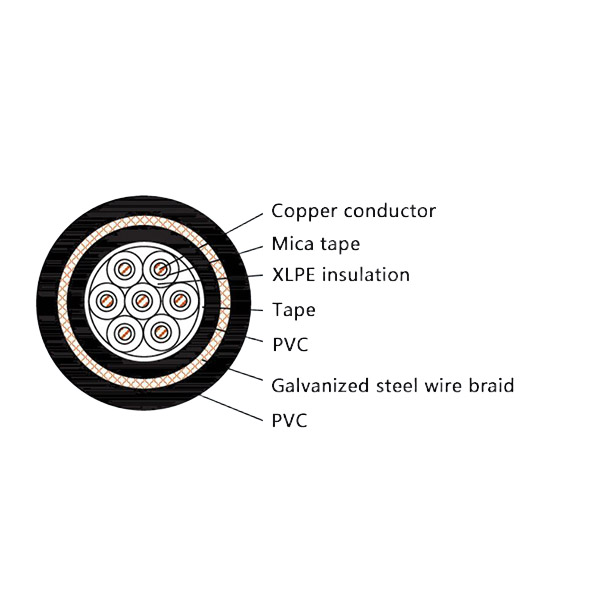

Cable Structure
| Item | Code | Description / Material |
|---|---|---|
| Conductor | - | Tinned or Plain Stranded Annealed Copper |
| Insulation | J | Mica Glass Tape + XLPE (Cross-linked Polyethylene) |
| Inner Sheath | V | PVC |
| Armor | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 2 | PVC Sheath |
| Sheath Color | - | Standard Black (other colors on request) |
Specifications
| Specification | Details |
|---|---|
| Rated Voltage | 150/250V |
| Core Numbers | 1, 2, 3, 4, 5, 7, 10, 12, 14, 16, 19, 24, 27, 30, 37 |
| Conductor Size | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
| Operating Temp. | -40℃ to +90℃ (Fixed installation) |
| Flammability | NA (Fire Resistant) |
Ordering Information
When ordering, please specify:
-
Product Code: CKJV92/NA
-
Number of Cores: (e.g., 12 cores)
-
Conductor Cross-Section: (e.g., 1.5mm²)
-
Length: (e.g., 500m per drum)
Example: CKJV92/NA 12x1.5mm²
