CKJPFP90/NC Marine Control Cable: Low Smoke Zero Halogen Fire Resistant Screened
Product Overview
CKJPFP90/NC marine control cable offers premium fire-resistant performance with exposed steel armor design. Featuring LSZH thermoplastic inner sheath, galvanized steel wire armor without outer sheath, mica-reinforced XLPE insulation, and electromagnetic screening for optimal protection in critical marine applications.
Key Features
-
Fire Resistance: IEC 60331 certified for maintained circuit integrity
-
Exposed Armor Design: Galvanized steel wire armor without outer sheath
-
LSZH Inner Protection: Halogen-free thermoplastic sheath (SHF1)
-
Enhanced Insulation: Mica glass tape + XLPE for 90°C operation
-
EMI Shielding: Copper braid or foil tape screening
-
Safety Standards: Halogen free, low smoke (IEC 60754, 61034)
Applications
-
Offshore platforms and oil rigs
-
Marine vessel control systems
-
Emergency power circuits
-
Hazardous area installations
-
Industrial automation
-
Mining operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoplastic (SHF1) |
| Screening | Tinned copper braid or foil tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | None |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

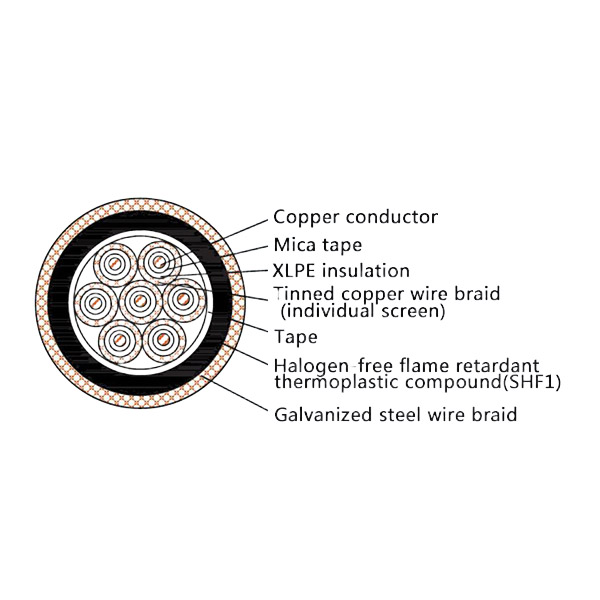

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK Marine & Offshore |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoplastic (SHF1) |
| Screening | Tinned copper braid or foil tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | None |
| Fire Rating | NC (Fire Resistant) |
Product Advantages
-
Enhanced Heat Dissipation: Exposed armor improves thermal performance
-
Mechanical Protection: Steel armor provides impact resistance
-
Environmental Safety: LSZH inner sheath ensures safety
-
Cost Effective: No outer sheath reduces material cost
-
Space Saving: Compact design for tight spaces
-
Global Compliance: International standards certified
