CKJPFP86/NC Marine Control Cable: Low Smoke Zero Halogen Fire Resistant Screened
Product Overview
CKJPFP86/NC marine control cable provides superior fire-resistant performance with flexible copper armor protection. Featuring dual-layer LSZH thermoplastic sheathing (SHF1), tinned copper wire armor, mica-reinforced XLPE insulation, and electromagnetic screening for reliable operation in demanding marine environments.
Key Features
-
Fire Resistance: IEC 60331 certified for maintained circuit integrity
-
Dual LSZH Protection: Inner and outer halogen-free thermoplastic sheath (SHF1)
-
Flexible Armor: Tinned copper wire braid for easy installation
-
Enhanced Insulation: Mica glass tape + XLPE for thermal stability
-
EMI Shielding: Copper braid or foil tape screening
-
Safety Standards: Halogen free, low smoke (IEC 60754, 61034)
Applications
-
Offshore platforms and oil rigs
-
Marine vessel control systems
-
Emergency power circuits
-
Hazardous area installations
-
Industrial automation
-
Mining operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoplastic (SHF1) |
| Screening | Tinned copper braid or foil tape |
| Armor | Tinned copper wire braid |
| Outer Sheath | LSZH thermoplastic (SHF1) |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

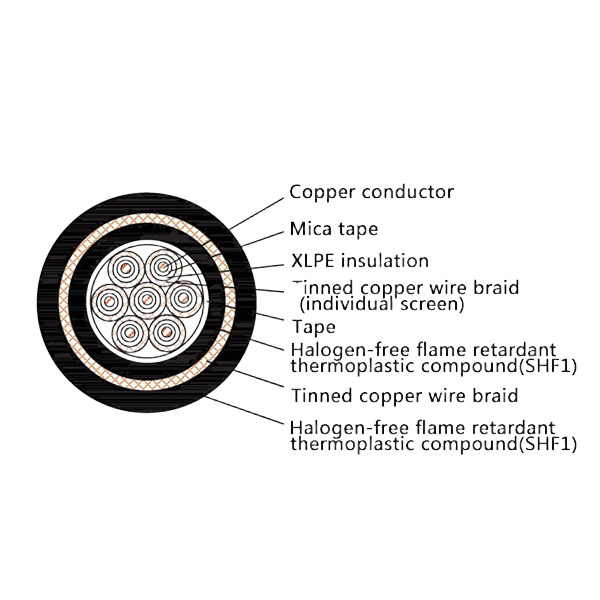

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK Marine & Offshore |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoplastic (SHF1) |
| Screening | Tinned copper braid or foil tape |
| Armor | Tinned copper wire braid |
| Outer Sheath | LSZH thermoplastic (SHF1) |
| Sheath Color | Black or custom |
| Fire Rating | NC (Fire Resistant) |
Product Advantages
-
Enhanced Flexibility: Copper wire armor allows easy installation
-
Dual Safety Protection: LSZH sheathing ensures environmental safety
-
Superior Fire Performance: Maintains circuit integrity in emergencies
-
EMI Protection: Effective screening for signal quality
-
Corrosion Resistance: Suitable for marine environments
-
Global Certification: International standard compliance
