CKJPFP96/NC Marine Control Cable: Low Smoke Zero Halogen Fire Resistant Screened
Product Overview
CKJPFP96/NC marine control cable delivers superior fire-resistant performance with comprehensive mechanical protection. Featuring dual-layer LSZH thermoplastic sheathing (SHF1), galvanized steel wire armor, mica-reinforced XLPE insulation, and electromagnetic screening for maximum reliability in demanding marine environments.
Key Features
-
Enhanced Fire Protection: IEC 60331 fire resistant + IEC 60332 flame retardant certified
-
Dual LSZH Protection: Inner and outer halogen-free thermoplastic sheath (SHF1)
-
Robust Armor: Galvanized steel wire braid for mechanical durability
-
Advanced Insulation: Mica glass tape + XLPE for 90°C thermal stability
-
EMI Shielding: Copper braid or foil tape screening options
-
Safety Standards: Zero halogen, low smoke emission (IEC 60754, 61034)
Applications
-
Offshore oil platforms and drilling rigs
-
Marine vessel critical control systems
-
Emergency power and safety circuits
-
Hazardous area industrial installations
-
Power generation emergency systems
-
Chemical plants safety circuits
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoplastic (SHF1) |
| Screening | Tinned copper braid or foil tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | LSZH thermoplastic (SHF1) |
| Core Configuration | 1-37 cores |
| Conductor Range | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design requirements
-
IEC 60228 - Conductor construction standards
-
IEC 60092-360 - Insulation and sheathing materials
-
IEC 60331 - Fire resistance certification
-
IEC 60332-1 & 60332-3-22 - Flame retardant performance
-
IEC 60754 - Halogen free verification
-
IEC 61034 - Low smoke density measurement

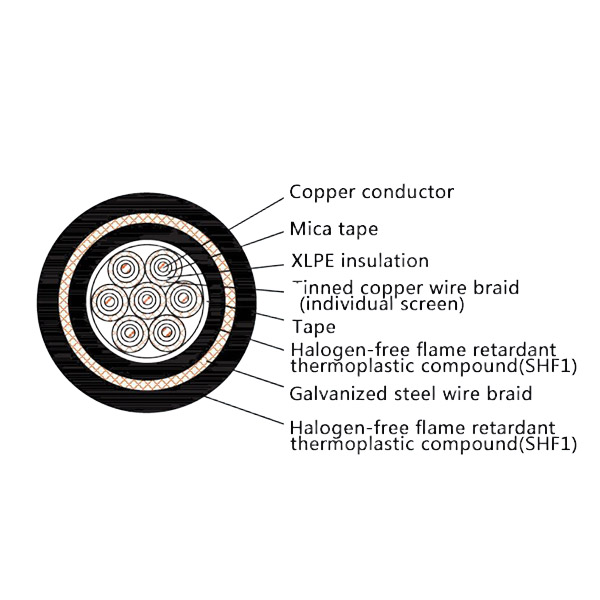

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK Marine & Offshore Control |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoplastic (SHF1) |
| Screening | Tinned copper braid or foil tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | LSZH thermoplastic (SHF1) |
| Sheath Color | Black (custom colors available) |
| Fire Rating | NC (Halogen Free Low Smoke Fire Resistant) |
Product Advantages
-
Maximum Protection: Dual-layer LSZH sheathing with steel armor
-
Fire Safety: Maintains circuit integrity during emergencies
-
Environmental Safety: Zero halogen emission protects personnel and equipment
-
Mechanical Durability: Steel armor provides superior impact resistance
-
Signal Integrity: Advanced EMI screening for critical control systems
-
Global Compliance: Full certification for international marine projects
