CKJPFP/NC Marine Control Cable: Low Smoke Zero Halogen Fire Resistant Screened
Product Overview
CKJPFP/NC marine control cable provides reliable fire-resistant performance with advanced safety features. Combining mica-reinforced XLPE insulation, halogen-free thermoplastic sheath, and electromagnetic screening for optimal protection in marine and industrial environments.
Key Features
-
Fire Resistance: IEC 60331 certified for circuit integrity
-
LSZH Sheath: Halogen-free thermoplastic compound (SHF1)
-
Enhanced Insulation: Mica glass tape + XLPE for thermal stability
-
EMI Protection: Copper braid or foil tape screening
-
Flame Retardant: IEC 60332-1 & 60332-3-22 compliant
-
Safety Certified: Low smoke, zero halogen (IEC 60754, 61034)
Applications
-
Offshore platforms and oil rigs
-
Marine vessel control systems
-
Emergency power and lighting
-
Industrial automation
-
Chemical plants
-
Mining operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Temperature Rating | 90°C |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Outer Sheath | LSZH thermoplastic (SHF1) |
| Screening | Tinned copper braid or foil tape |
| Core Options | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

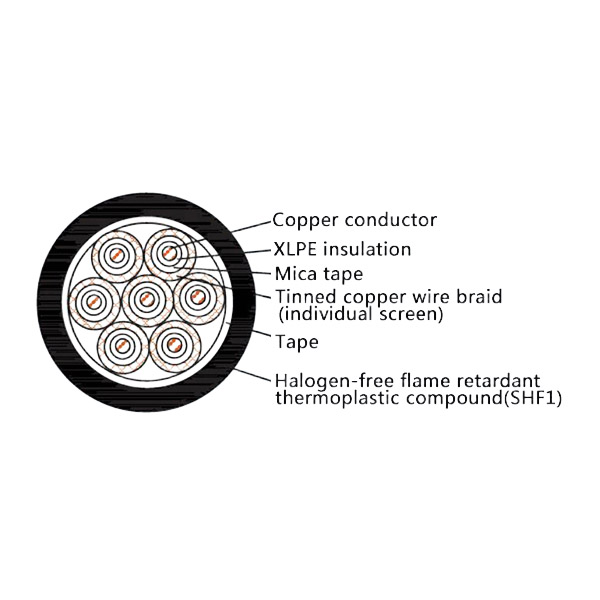

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK Marine & Offshore |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Outer Sheath | LSZH thermoplastic (SHF1) |
| Screening | Tinned copper braid or foil tape |
| Sheath Color | Black or custom |
| Fire Rating | NC (Fire Resistant) |
Product Advantages
-
Reliable Safety: Maintains circuit integrity during fires
-
Environmental Protection: LSZH sheath prevents toxic emissions
-
Signal Quality: Effective EMI screening
-
Easy Installation: Flexible construction
-
Durable Performance: Suitable for harsh environments
-
Global Standards: Full international certification
