CKJPJP80/NC Marine Control Cable: Low Smoke Zero Halogen Fire Resistant Screened
Product Overview
CKJPJP80/NC marine control cable combines advanced fire-resistant technology with flexible exposed copper armor. Featuring LSZH thermoset inner sheath, tinned copper wire armor without outer sheath, mica-reinforced XLPE insulation, and electromagnetic screening for optimal performance in marine applications.
Key Features
-
Fire Resistance Certified: IEC 60331 compliant for circuit integrity
-
Exposed Copper Armor: Tinned copper wire braid without outer sheath
-
LSZH Inner Protection: Halogen-free thermoset inner sheath (SHF2)
-
Enhanced Insulation: Mica glass tape + XLPE for 90°C operation
-
EMI Shielding: Copper braid or foil tape screening options
-
Safety Standards: Halogen free and low smoke emission (IEC 60754, 61034)
Applications
-
Offshore platforms and oil rigs
-
Marine vessel control systems
-
Emergency power circuits
-
Hazardous area installations
-
Industrial automation systems
-
Mining operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoset (SHF2) |
| Screening | Tinned copper braid or foil tape |
| Armor | Tinned copper wire braid |
| Outer Sheath | None |
| Core Configuration | 1-37 cores |
| Conductor Range | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

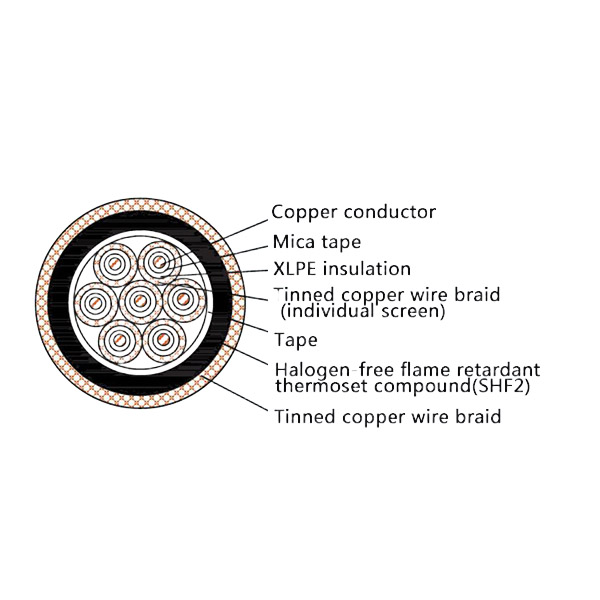

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK Marine & Offshore |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | LSZH thermoset (SHF2) |
| Screening | Tinned copper braid or foil tape |
| Armor | Tinned copper wire braid |
| Outer Sheath | None (exposed armor) |
| Fire Rating | NC (Fire Resistant) |
Product Advantages
-
Superior Flexibility: Copper wire armor enables easy installation
-
Enhanced Heat Dissipation: Exposed armor design improves thermal performance
-
Environmental Safety: LSZH inner sheath ensures halogen-free operation
-
Cost Effective: Eliminates outer sheath while maintaining performance
-
Space Saving: Compact design for confined spaces
-
Global Compliance: Meets international marine standards
