Product Overview
CKJVP80/NA marine control cable offers superior fire-resistant performance with an innovative exposed copper armor design. Featuring mica-reinforced XLPE insulation, electromagnetic screening, and tinned copper wire armor without outer sheath, this cable provides optimal protection and flexibility for critical marine control systems.
Key Features
-
Certified Fire Resistance: IEC 60331 compliant for maintained circuit integrity
-
Exposed Copper Armor: Tinned copper wire braid without outer sheath
-
Enhanced Insulation: Mica glass tape with XLPE for thermal stability
-
EMI Protection: Copper braid or foil tape screening options
-
Flexible Construction: Copper armor allows easy installation
-
Safety Certified: Halogen free and low smoke emission standards
Applications
-
Offshore platforms and oil rigs
-
Marine vessel control systems
-
Emergency power circuits
-
Hazardous area installations
-
Industrial automation
-
Mining operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Temperature Rating | 90°C |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | PVC |
| Screening | Tinned copper braid or foil tape |
| Armor | Tinned copper wire braid |
| Outer Sheath | None (exposed armor) |
| Core Options | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

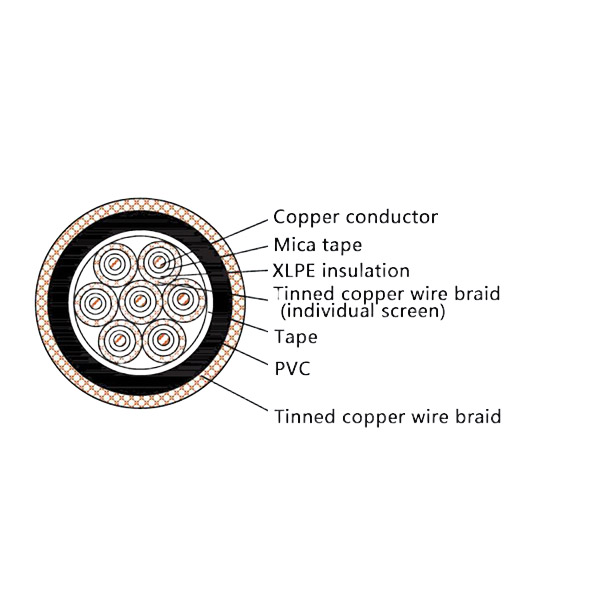

Construction Details
| Component | Specification |
|---|---|
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | PVC |
| Screening | Tinned copper braid or foil tape |
| Armor | Tinned copper wire braid |
| Outer Sheath | None |
| Fire Rating | NA (Fire Resistant) |
Product Advantages
-
Enhanced Flexibility: Copper wire armor allows easy installation in tight spaces
-
Superior Heat Dissipation: Exposed armor design improves thermal performance
-
Fire Safety: Maintains circuit integrity during emergency situations
-
Cost Effective: Eliminates outer sheath while maintaining performance
-
Corrosion Resistant: Tinned copper components suit marine environments
-
Space Saving: Compact design ideal for confined installations
