Product Overview
CKJPJP/NC marine control cable represents a premium-grade solution with comprehensive fire protection and environmental safety features. Incorporating mica-reinforced XLPE insulation, halogen-free thermoset sheathing, and advanced electromagnetic screening, this cable ensures maximum reliability for critical marine and industrial applications.
Key Features
-
Dual Fire Protection: IEC 60331 fire resistant + IEC 60332 flame retardant certified
-
Zero Halogen Safety: LSZH thermoset sheath (SHF2) compliant with IEC 60754
-
Low Smoke Emission: Meets IEC 61034 for enhanced visibility during incidents
-
Advanced Screening: Copper braid or foil tape for electromagnetic protection
-
Thermal Stability: XLPE insulation with mica tape for 90°C operation
-
Marine Grade: Specifically designed for offshore harsh environments
Applications
-
Offshore oil platforms and drilling rigs
-
Marine vessel control and monitoring systems
-
Emergency power and lighting circuits
-
Hazardous area industrial installations
-
Power generation safety systems
-
Chemical plants and mining operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Maximum Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | Halogen-free thermoset (SHF2) |
| Screening | Tinned copper braid or foil tape |
| Flammability | NC (Fire Resistant) |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design specifications
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath materials
-
IEC 60331 - Fire resistance certification
-
IEC 60332-1 & 60332-3-22 - Flame retardant requirements
-
IEC 60754 - Halogen free verification
-
IEC 61034 - Low smoke density measurement

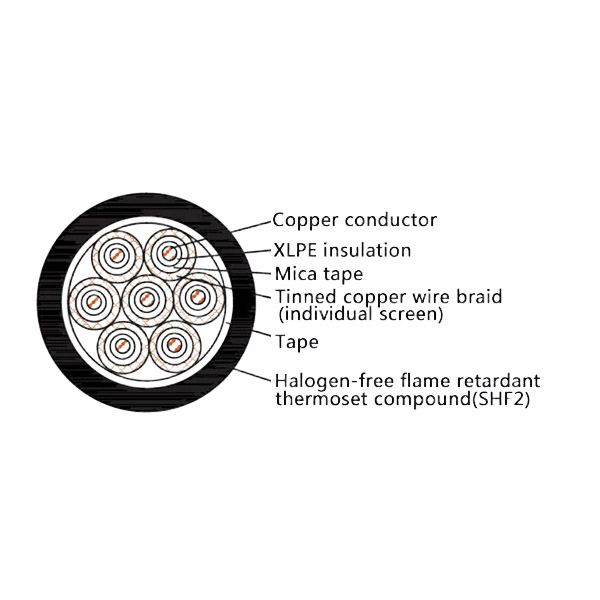

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK Marine & Offshore Control |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | Halogen-free thermoset (SHF2) |
| Screening | Tinned copper braid or foil tape |
| Sheath Color | Black (custom colors available) |
| Fire Rating | NC (Halogen Free Low Smoke Fire Resistant) |
Product Advantages
-
Maximum Safety: Dual fire protection system ensures circuit integrity
-
Environmental Protection: Zero halogen emission protects equipment and personnel
-
Signal Integrity: Advanced screening prevents electromagnetic interference
-
Longevity: Thermoset sheath provides superior chemical and thermal resistance
-
Compliance Ready: Full certification for global marine projects
-
Flexible Installation: Multiple core configurations for various applications
