Product Overview
CKJVP82/NA marine control cable combines advanced fire-resistant technology with flexible copper armor protection. Featuring mica-reinforced XLPE insulation, electromagnetic screening, and tinned copper wire armor, this cable ensures reliable performance in critical marine applications where both fire safety and flexibility are essential requirements.
Key Features
-
Certified Fire Resistance: IEC 60331 compliant for maintained circuit integrity
-
Flexible Armor Design: Tinned copper wire braid for easy installation
-
EMI Protection: Copper braid or foil tape screening options
-
Enhanced Insulation: Mica glass tape with XLPE for thermal stability
-
Complete Protection: PVC inner and outer sheath layers
-
Safety Certified: Halogen free and low smoke emission compliant
Applications
-
Offshore platforms and oil rigs
-
Marine vessel control systems
-
Emergency power circuits
-
Industrial automation
-
Hazardous area installations
-
Mining operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Temperature Rating | 90°C |
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | PVC |
| Screening | Tinned copper braid or foil tape |
| Armor | Tinned copper wire braid |
| Outer Sheath | PVC |
| Core Options | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

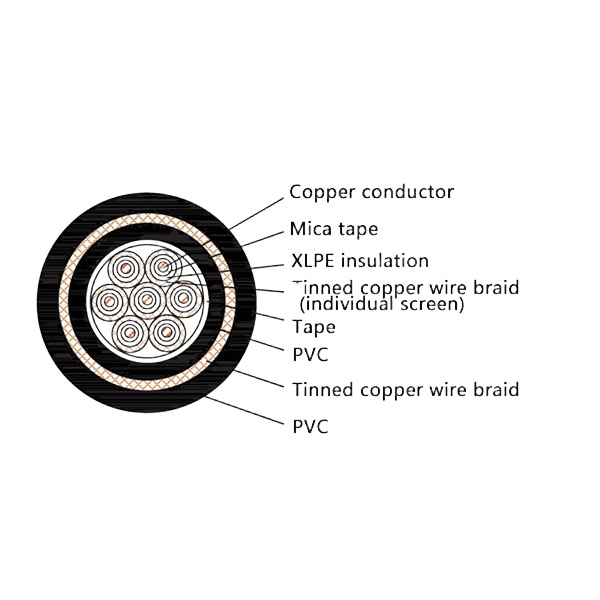

Construction Details
| Component | Specification |
|---|---|
| Conductor | Tinned/plain stranded copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | PVC |
| Screening | Tinned copper braid or foil tape |
| Armor | Tinned copper wire braid |
| Outer Sheath | PVC |
| Fire Rating | NA (Fire Resistant) |
Product Advantages
-
Enhanced Flexibility: Copper wire armor allows easier installation
-
Fire Safety: Maintains circuit integrity during emergencies
-
EMI Protection: Effective screening for signal integrity
-
Corrosion Resistance: Suitable for marine environments
-
Space Efficient: Compact design with flexible armor
-
Full Certification: International standard compliance
