Product Overview
CKJVP90/NA marine control cable delivers exceptional fire-resistant performance with a unique armor-exposed design. Combining mica-reinforced XLPE insulation, electromagnetic screening, and galvanized steel wire armor without outer sheath, this cable provides maximum protection for critical circuits in demanding marine environments.
Key Features
-
IEC 60331 Fire Resistance: Maintains circuit integrity during fire emergencies
-
Exposed Armor Design: Galvanized steel wire armor without outer sheath
-
Enhanced Insulation: Mica glass tape with XLPE for superior thermal stability
-
EMI Protection: Copper braid or foil tape screening options
-
Multi-Layer Construction: PVC inner sheath with armored protection
-
Safety Certified: Compliant with halogen free and low smoke standards
Applications
-
Offshore platforms critical control systems
-
Marine vessel emergency circuits
-
Emergency power and lighting systems
-
Hazardous area industrial installations
-
Power generation safety systems
-
Chemical plant emergency controls
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | PVC |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | None (Armor exposed) |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath
-
IEC 60331 - Fire resistance
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

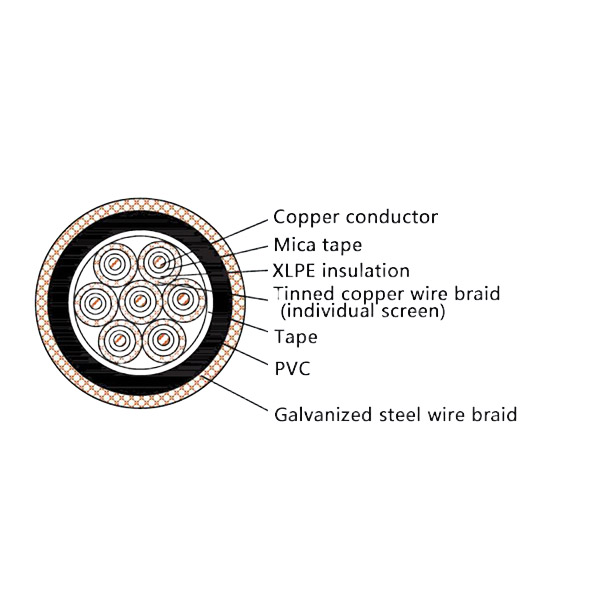

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK Marine & Offshore Control |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE |
| Inner Sheath | PVC |
| Screening | Tinned copper braid or foil tape |
| Armor | Galvanized steel wire braid |
| Outer Protection | No outer sheath (Armor exposed) |
| Fire Rating | NA (Fire Resistant) |
Product Advantages
-
Direct Armor Protection: Maximum mechanical strength with exposed armor design
-
Emergency Reliability: Maintains circuit integrity during critical situations
-
Optimal Heat Dissipation: Exposed armor enhances thermal performance
-
Reduced Installation Diameter: Compact design for space-constrained applications
-
Enhanced Durability: Steel armor provides superior impact resistance
-
Cost-Effective Solution: Eliminates outer sheath while maintaining performance
