Product Overview
CKJ82/SA marine control cable provides reliable performance with XLPE insulation and flexible copper wire armor, offering excellent flame retardancy and mechanical protection for various marine and industrial applications.
Key Features
-
Flame Retardant Certified: Complies with IEC 60332-1 & IEC 60332-3-22 standards
-
Flexible Armor Design: Tinned copper wire braid for easy installation
-
Thermal Stability: XLPE insulation rated for 90°C operation
-
Durable Protection: PVC outer sheath for reliable performance
-
Cost-Effective Solution: Balanced performance and affordability
-
Marine Grade: Suitable for offshore and harsh environments
Applications
-
Offshore platforms and marine installations
-
Shipboard control and power systems
-
Industrial automation circuits
-
Power and lighting systems
-
Chemical processing plants
-
Mining and metallurgical operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Armor | Tinned/plain copper wire braided |
| Outer Sheath | PVC |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design specifications
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath materials
-
IEC 60332-1 & 60332-3-22 - Flame retardant certification
-
IEC 60754 - Halogen free verification
-
IEC 61034 - Low smoke density measurement

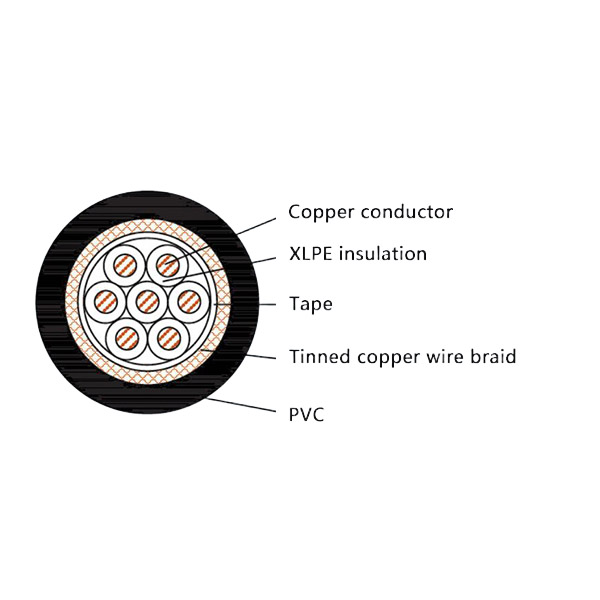

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK (Marine & Offshore Control Cable) |
| Conductor | Tinned/plain stranded annealed copper wire |
| Insulation | XLPE material |
| Armor | Tinned/plain copper wire braid |
| Outer Sheath | PVC compound |
| Sheath Color | Black (other colors available) |
| Flammability | SA (Bunched Cables Flame Retardant) |
Product Advantages
-
Proven Safety: Certified flame retardant performance for bundled installations
-
Enhanced Flexibility: Copper wire armor allows easier routing in tight spaces
-
Cost Efficiency: PVC sheath provides reliable protection at competitive cost
-
Excellent Conductivity: Tinned copper components ensure reliable performance
-
Corrosion Resistance: Suitable for marine environments
-
Space Saving: Reduced bending radius for easier installation
-
Full Compliance: Meets international marine standards
