Product Overview
CKJVP/NA marine control cable integrates advanced fire-resistant technology with comprehensive electromagnetic protection. Featuring mica glass tape reinforced XLPE insulation and dual screening options, this cable guarantees maintained circuit integrity during fire emergencies while ensuring reliable signal transmission in critical marine and industrial applications.
Key Features
-
Certified Fire Resistance: IEC 60331 compliant for circuit integrity
-
Dual Flame Retardancy: Meets IEC 60332-1 & IEC 60332-3-22 standards
-
EMI Protection: Copper braid or foil tape screening options
-
Enhanced Insulation: Mica glass tape with XLPE for superior thermal stability
-
Safety Compliant: Halogen free (IEC 60754) and low smoke emission (IEC 61034)
-
Marine Grade Construction: Optimized for offshore harsh environments
Applications
-
Offshore platforms and oil rig critical systems
-
Marine vessel control and monitoring circuits
-
Emergency power and lighting systems
-
Hazardous area industrial installations
-
Power generation emergency systems
-
Chemical plants and mining safety circuits
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Max Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation System | Mica glass tape + XLPE |
| Inner Sheath | PVC protection |
| Screening Options | Tinned copper braid or Alu/Polyester tape |
| Core Configuration | 1-37 cores |
| Conductor Range | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design specifications
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath materials
-
IEC 60331 - Fire resistance certification
-
IEC 60332-1 & 60332-3-22 - Flame retardant compliance
-
IEC 60754 - Halogen free verification
-
IEC 61034 - Low smoke density certification

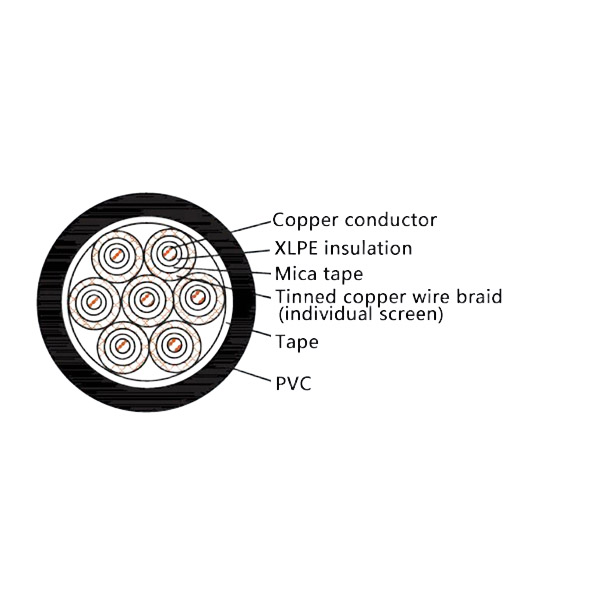

Construction Details
| Component | Specification |
|---|---|
| Product Series | CK Marine & Offshore Control |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | Mica glass tape + XLPE insulation |
| Inner Sheath | PVC protection layer |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Outer Color | Black (custom colors available) |
| Fire Rating | NA (Fire Resistant) |
Product Advantages
-
Emergency Circuit Integrity: Maintains operation during fire incidents
-
Superior Signal Quality: Advanced screening for electromagnetic protection
-
Enhanced Safety: Fire-resistant with minimal smoke emission
-
Marine Durability: Corrosion-resistant for offshore applications
-
Configuration Flexibility: 1-37 cores for various system requirements
-
Global Compliance: Meets international marine safety standards
