Product Overview
CKJ85/SC marine control cable combines superior XLPE insulation with advanced low smoke zero halogen thermoset sheathing and flexible copper wire armor, providing exceptional flame retardancy and environmental safety for critical marine and industrial applications.
Key Features
-
Advanced Flame Retardancy: Certified to IEC 60332-1 & IEC 60332-3-22 standards
-
Zero Halogen Safety: Complies with IEC 60754 for non-corrosive gas emission
-
Low Smoke Density: Meets IEC 61034 for enhanced visibility during incidents
-
Flexible Armor Design: Tinned copper wire braid for easy installation
-
Thermoset Sheath: SHF2 compound for improved thermal and chemical resistance
-
Thermal Stability: XLPE insulation rated for 90°C continuous operation
Applications
-
Offshore drilling platforms and production rigs
-
Marine vessel control and monitoring systems
-
Critical power and lighting circuits
-
Hazardous area industrial installations
-
Power generation and distribution systems
-
Mining and metallurgical operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Maximum Operating Temperature | 90°C |
| Conductor Material | Tinned/plain stranded annealed copper |
| Insulation System | XLPE |
| Armor Construction | Tinned/plain copper wire braid |
| Outer Sheath | Halogen-free flame retardant thermoset (SHF2) |
| Available Cores | 1 to 37 cores |
| Conductor Cross-Sections | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable construction requirements
-
IEC 60228 - Conductors for insulated cables
-
IEC 60092-360 - Insulation and sheathing specifications
-
IEC 60332-1 & 60332-3-22 - Comprehensive flame retardancy testing
-
IEC 60754 - Halogen content verification
-
IEC 61034 - Smoke density measurement

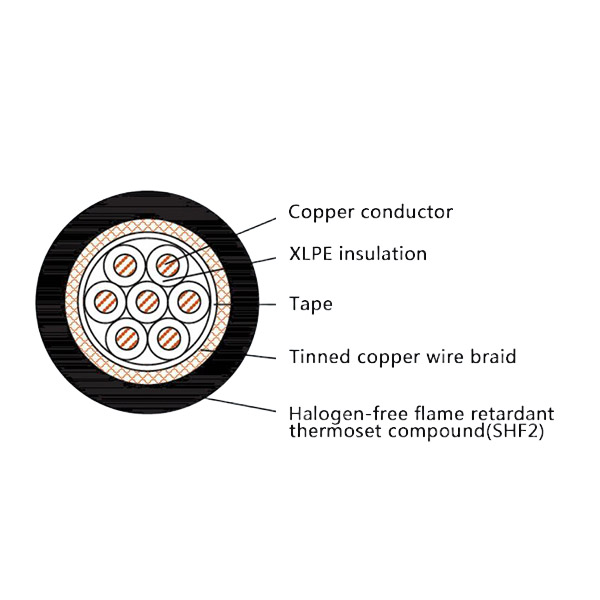

Construction Details
| Component | Specification |
|---|---|
| Product Series | CK (Marine & Offshore Control Cable) |
| Conductor Design | Tinned/plain stranded annealed copper |
| Insulation Material | XLPE |
| Armor Type | Tinned/plain copper wire braid |
| External Sheath | Halogen-free flame retardant thermoset (SHF2) |
| Standard Color | Black (custom colors available) |
| Flammability Class | SC (Halogen Free Low Smoke Flame Retardant) |
Product Advantages
-
Enhanced Safety Performance: Zero halogen and low smoke characteristics ensure personnel safety
-
Superior Flexibility: Copper wire armor allows easier installation in confined spaces
-
Extended Service Life: Thermoset sheath provides excellent resistance to harsh environments
-
Excellent Conductivity: Tinned copper components ensure reliable electrical performance
-
Corrosion Resistance: Ideal for marine and corrosive environments
-
Space Efficiency: Reduced bending radius compared to steel armor designs
-
Full Certification: Complies with international marine and safety standards
