Product Overview
CKJ86/SC marine control cable combines XLPE insulation with low smoke halogen free properties and flexible copper wire armor, offering excellent flame retardancy and mechanical protection while ensuring enhanced safety in confined spaces.
Key Features
-
Advanced Flame Retardancy: Certified to IEC 60332-1 & IEC 60332-3-22
-
Halogen Free Composition: Complies with IEC 60754 standards
-
Low Smoke Emission: Meets IEC 61034 for improved visibility
-
Flexible Armor Design: Tinned copper wire braid for easy installation
-
Thermal Resistance: XLPE insulation rated for 90°C operation
-
Environmental Safety: LSZH sheath prevents toxic gas emission
Applications
-
Offshore platforms and drilling rigs
-
Marine vessel control systems
-
Industrial automation circuits
-
Power and lighting systems
-
Chemical processing plants
-
Mining and tunneling operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Armor | Tinned/plain copper wire braided |
| Outer Sheath | Halogen-free flame retardant thermoplastic (SHF1) |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design specifications
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheath materials
-
IEC 60332-1 & 60332-3-22 - Flame retardant certification
-
IEC 60754 - Halogen free verification
-
IEC 61034 - Low smoke density measurement

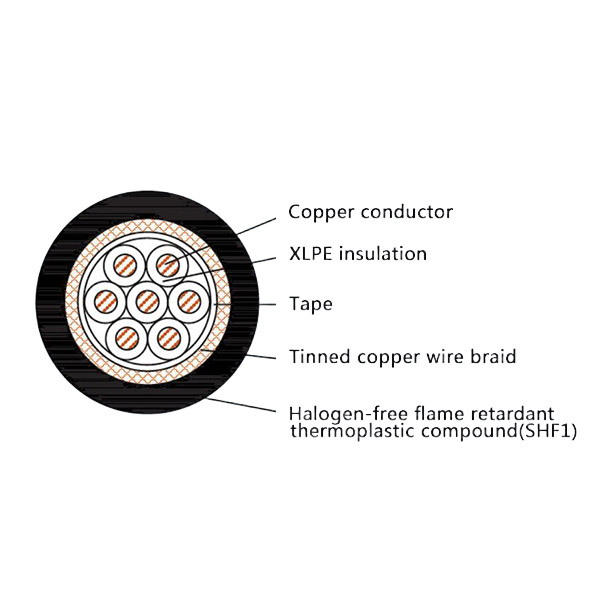

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK (Marine & Offshore Control Cable) |
| Conductor | Tinned/plain stranded annealed copper wire |
| Insulation | XLPE material |
| Armor | Tinned/plain copper wire braid |
| Outer Sheath | Halogen-free flame retardant thermoplastic (SHF1) |
| Sheath Color | Black (other colors available) |
| Flammability | SC (Halogen Free Low Smoke Flame Retardant) |
Product Advantages
-
Enhanced Safety: Zero halogen emission and low smoke density ensure personnel safety
-
Superior Flexibility: Copper wire armor allows easier installation in tight spaces
-
Excellent Conductivity: Tinned copper components provide reliable electrical performance
-
Corrosion Resistance: Suitable for harsh marine environments
-
Space Saving: Reduced bending radius compared to steel armor designs
-
Full Compliance: Meets international marine and safety standards
