Product Overview
CKJ92/SA marine control cable provides reliable performance with XLPE insulation and robust steel wire armor, designed for marine and industrial applications where flame retardancy and durability are essential requirements.
Key Features
-
Flame Retardant: Certified to IEC 60332-1 & IEC 60332-3-22 standards
-
Durable Construction: Galvanized steel wire armor for mechanical protection
-
Thermal Stability: XLPE insulation rated for 90°C operation
-
Cost-Effective: PVC outer sheath for reliable performance
-
Marine Grade: Suitable for offshore and harsh environments
-
Flexible Application: Available in 1-37 cores for various configurations
Applications
-
Offshore platforms and marine installations
-
Shipboard control and power systems
-
Industrial automation and control circuits
-
Power generation facilities
-
Chemical processing plants
-
Mining and metallurgical operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Armor | Galvanized steel wire braid |
| Outer Sheath | PVC |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 & 60332-3-22 - Flame retardancy
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

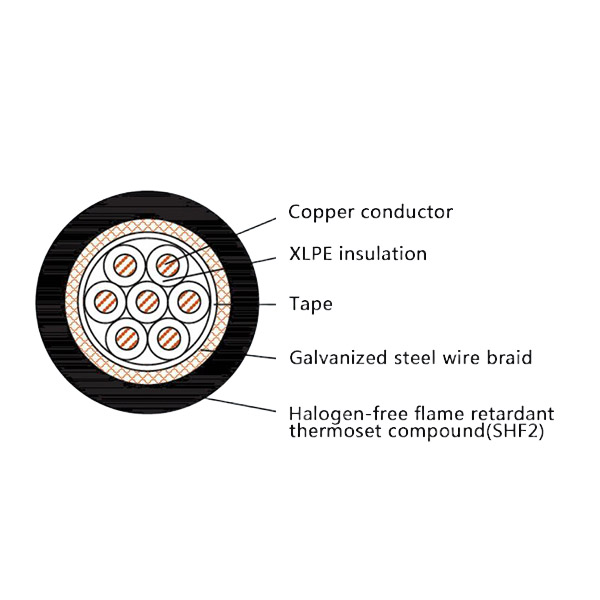

Construction Details
| Component | Specification |
|---|---|
| Series Code | CK (Marine & Offshore Control) |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Armor | Galvanized steel wire braid |
| Outer Sheath | PVC compound |
| Sheath Color | Black (other colors available) |
| Flammability | SA (Bunched Cables Flame Retardant) |
Product Advantages
-
Proven Safety: Certified flame retardant performance for bundled installations
-
Mechanical Protection: Steel wire armor provides excellent crush resistance
-
Thermal Endurance: XLPE insulation maintains integrity at high temperatures
-
Cost Efficiency: PVC sheath offers reliable protection at competitive cost
-
Marine Durability: Suitable for harsh offshore environments
-
Versatile Configuration: Multiple core options for various applications
