Product Overview
CKJ95/SC marine control cable combines superior XLPE insulation with advanced low smoke zero halogen thermoset sheathing and galvanized steel wire armor. Engineered for maximum safety and reliability in demanding marine applications where flame retardancy and environmental protection are critical.
Key Features
-
Advanced Flame Retardancy: Certified to IEC 60332-1 & IEC 60332-3-22 standards
-
Zero Halogen Safety: Compliant with IEC 60754 for non-corrosive gas emission
-
Reduced Smoke Density: Meets IEC 61034 for enhanced visibility during incidents
-
Heavy-Duty Protection: Galvanized steel wire armor for superior mechanical strength
-
Thermal Stability: XLPE insulation rated for 90°C continuous operation
-
Thermoset Sheath: SHF2 compound for improved thermal and chemical resistance
Applications
-
Offshore drilling platforms and production rigs
-
Marine vessel control and monitoring systems
-
Critical power and lighting circuits in harsh environments
-
Hazardous area industrial installations
-
Power generation and distribution systems
-
Mining and metallurgical operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Maximum Operating Temperature | 90°C |
| Conductor Material | Tinned/plain stranded annealed copper |
| Insulation System | XLPE |
| Armor Construction | Galvanized steel wire braid |
| Outer Sheath | Halogen-free flame retardant thermoset (SHF2) |
| Available Cores | 1 to 37 cores |
| Conductor Cross-Sections | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable construction requirements
-
IEC 60228 - Conductors for insulated cables
-
IEC 60092-360 - Insulation and sheathing specifications
-
IEC 60332-1 & 60332-3-22 - Comprehensive flame retardancy testing
-
IEC 60754 - Halogen content verification
-
IEC 61034 - Smoke density measurement

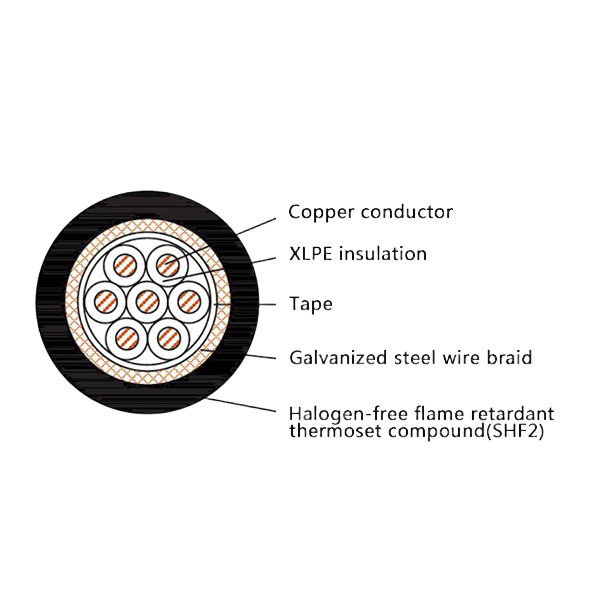

Construction Details
-
Product Series: CK (Marine & Offshore Control Cable)
-
Conductor Design: Tinned/plain stranded annealed copper per IEC 60228
-
Insulation Material: XLPE for superior thermal endurance
-
Mechanical Armor: Galvanized steel wire braid (Code 9)
-
External Sheath: Halogen-free flame retardant thermoset compound (SHF2)
-
Standard Color: Black (custom colors available)
-
Flammability Classification: SC (Halogen Free Low Smoke Flame Retardant)
Product Advantages
-
Exceptional fire performance with verified flame retardant properties
-
Enhanced personnel safety through zero halogen and low smoke characteristics
-
Superior mechanical protection with galvanized steel wire armor
-
Extended service life with thermoset sheath for harsh marine environments
-
Reliable operation in high temperature conditions up to 90°C
-
Full compliance with international marine and safety standards
-
Optimal performance in bundled cable installations
