Product Overview
The CKJP92/SA marine control cable combines superior XLPE insulation with reliable flame retardant properties and comprehensive electromagnetic screening. Designed for marine and industrial applications where consistent performance and safety are essential.
Key Features
-
Flame Retardant: Certified to IEC 60332-1 & IEC 60332-3-22 standards
-
Electromagnetic Screening: Tinned copper braid or foil tape protection
-
Durable Construction: Galvanized steel wire armor for mechanical protection
-
Thermal Stability: XLPE insulation rated for 90°C operation
-
PVC Sheath: Reliable outer protection with flame retardant properties
-
Marine Grade: Designed for offshore and harsh environments
Applications
-
Offshore platforms and marine installations
-
Shipboard control and monitoring systems
-
Industrial power and lighting circuits
-
Chemical processing plants
-
Power generation facilities
-
Mining and metallurgical operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | PVC |
| Core Range | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design specifications
-
IEC 60228 - Conductor requirements
-
IEC 60092-360 - Insulation and sheathing standards
-
IEC 60332-1 & 60332-3-22 - Flame retardancy certification
-
IEC 60754 - Halogen-free compliance
-
IEC 61034 - Low smoke performance

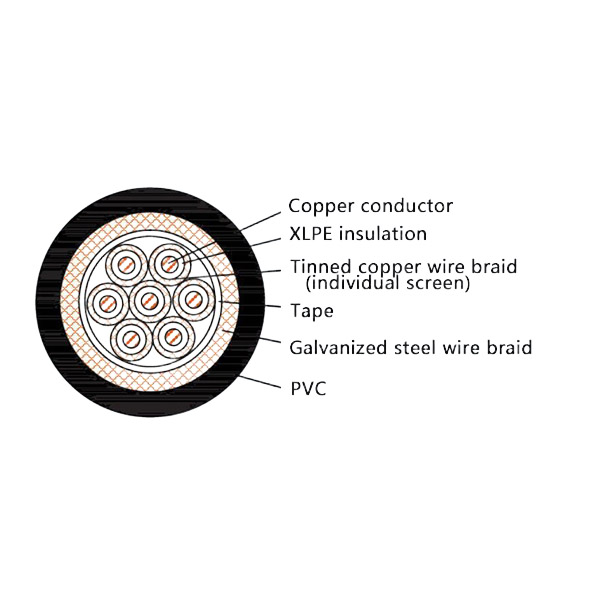

Construction Details
-
Product Series: Marine & offshore control cable (CK)
-
Conductor: Tinned/plain stranded annealed copper wire
-
Insulation: XLPE material
-
Screening: Tinned copper braid or Alu/Polyester tape with drain wire
-
Armor: Galvanized steel wire braid
-
Outer Sheath: PVC compound
-
Sheath Color: Standard black (other colors available)
-
Flame Rating: SA (Bunched Cables Flame Retardant)
Product Advantages
-
Reliable flame retardant performance for enhanced safety
-
Effective electromagnetic interference protection
-
Robust mechanical strength with steel wire armor
-
Suitable for bundled installation in cable trays
-
Cost-effective PVC sheath solution
-
Full compliance with international marine standards
