Product Overview
The CKJP95/SC represents a premium marine control cable integrating XLPE insulation with advanced low smoke halogen free (LSHF) thermoset sheathing. Engineered for maximum reliability in demanding environments where flame retardancy and electromagnetic compatibility are critical requirements.
Key Features
-
Advanced Flame Retardancy: Certified to IEC 60332-1 & IEC 60332-3-22 standards
-
Zero Halogen Safety: Compliant with IEC 60754 for non-corrosive gas emission
-
Reduced Smoke Density: Meets IEC 61034 for enhanced visibility during incidents
-
Superior Screening: Tinned copper braid or composite tape for optimal EMI protection
-
Heavy-Duty Armor: Galvanized steel wire braid for mechanical integrity
-
Thermoset Sheath: SHF2 compound for improved thermal and chemical resistance
Applications
-
Offshore drilling platforms and production rigs
-
Marine vessel control and monitoring systems
-
Critical power and lighting circuits
-
Hazardous area industrial installations
-
Power generation and distribution systems
-
Mining and metallurgical operations
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Maximum Operating Temperature | 90°C |
| Conductor Material | Tinned/plain stranded annealed copper |
| Insulation System | XLPE |
| Screening Options | Tinned copper braid or Alu/Polyester tape with drain wire |
| Armor Construction | Galvanized steel wire braid |
| Outer Sheath | Halogen-free flame retardant thermoset (SHF2) |
| Available Cores | 1 to 37 cores |
| Conductor Cross-Sections | 0.5mm² to 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable construction requirements
-
IEC 60228 - Conductors for insulated cables
-
IEC 60092-360 - Insulation and sheathing specifications
-
IEC 60332-1 & 60332-3-22 - Comprehensive flame retardancy testing
-
IEC 60754 - Halogen content verification
-
IEC 61034 - Smoke density measurement

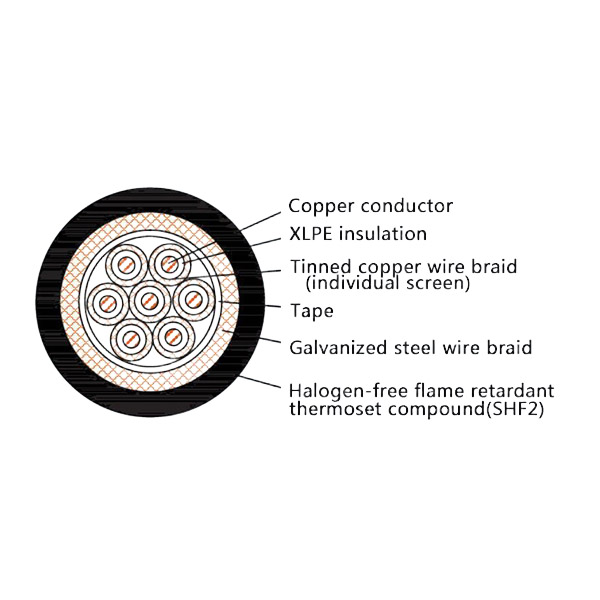

Construction Details
-
Product Series: CK (Marine & Offshore Control Cable)
-
Conductor Design: Tinned/plain stranded annealed copper per IEC 60228
-
Insulation Material: XLPE for thermal endurance
-
EMI Protection: Dual screening options - tinned copper braid or foil composite
-
Mechanical Armor: Galvanized steel wire braid (Code 9)
-
External Sheath: Halogen-free flame retardant thermoset compound (SHF2)
-
Standard Color: Black (custom colors available)
-
Flammability Classification: SC (Halogen Free Low Smoke Flame Retardant)
Product Advantages
-
Exceptional fire performance with verified flame retardant properties
-
Enhanced personnel safety through halogen-free and low smoke characteristics
-
Reliable signal integrity with comprehensive electromagnetic screening
-
Superior mechanical protection with galvanized steel wire armor
-
Extended service life with thermoset sheath for harsh environments
-
Full international certification for global project acceptance
