Product Overview
The CKJP96/SC marine control cable combines XLPE insulation with low smoke halogen free (LSHF) properties and comprehensive electromagnetic screening. Designed for critical applications where flame retardancy and environmental safety are paramount.
Key Features
-
Flame Retardant: Certified to IEC 60332-1 & IEC 60332-3-22
-
Low Smoke Halogen Free: Compliant with IEC 61034 & IEC 60754
-
EMI Protection: Copper braid or foil screening for interference protection
-
Steel Wire Armor: Galvanized braid for mechanical strength
-
XLPE Insulation: Thermal stability up to 90°C
-
LSHF Sheath: SHF1 compound for enhanced safety
Applications
-
Offshore platforms and oil rigs
-
Marine control and instrumentation
-
Power and lighting systems
-
Chemical and processing plants
-
Power generation facilities
-
Mining and industrial automation
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned/plain stranded annealed copper |
| Insulation | XLPE |
| Screening | Tinned copper braid or Alu/Polyester tape |
| Armor | Galvanized steel wire braid |
| Outer Sheath | Halogen-free flame retardant thermoplastic (SHF1) |
| Core Configuration | 1-37 cores |
| Conductor Sizes | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design requirements
-
IEC 60228 - Conductor standards
-
IEC 60092-360 - Insulation and sheathing materials
-
IEC 60332-1 & 60332-3-22 - Flame retardancy tests
-
IEC 60754 - Halogen-free verification
-
IEC 61034 - Low smoke density measurement

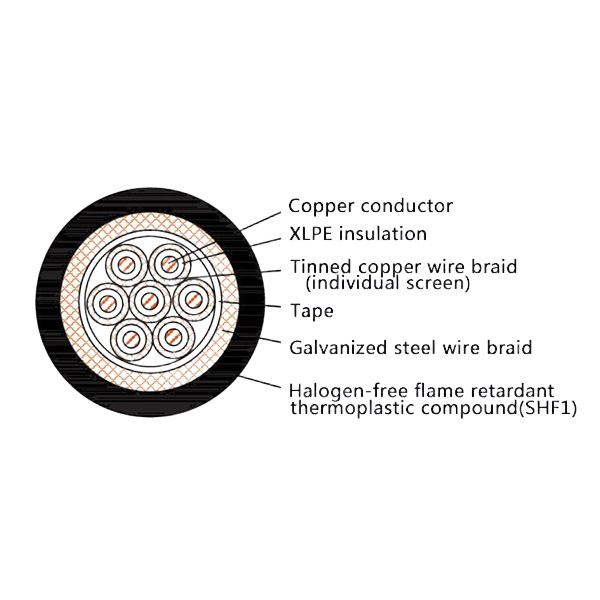

Construction Details
-
Series Identification: CK (Marine & Offshore Control)
-
Conductor Construction: Tinned/plain stranded annealed copper
-
Insulation Material: XLPE compound
-
Screening System: Tinned copper braid or Alu/Polyester tape with drain wire
-
Armor Type: Galvanized steel wire braid
-
Sheath Material: Halogen-free flame retardant thermoplastic (SHF1)
-
Color Options: Standard black (custom colors available)
-
Flame Rating: SC (Halogen Free Low Smoke Flame Retardant)
Product Advantages
-
Enhanced fire safety with flame retardant properties
-
Environmental protection with halogen-free composition
-
Reliable signal transmission with comprehensive EMI screening
-
Robust mechanical protection with steel wire armor
-
Long-term reliability in harsh environments
-
Full compliance with international marine standards
