Product Overview
The CKJ82/NA marine control cable features XLPE insulation with PVC outer sheath and tinned copper braid armor. This reliable cable solution provides excellent fire resistance and mechanical protection for various marine and industrial control applications.
Key Features
-
Fire Resistant: Reliable performance in fire conditions
-
Flame Retardant: Meets IEC 60332-1 & IEC 60332-3-22 standards
-
XLPE Insulation: Excellent thermal stability up to 90°C
-
Copper Braid Armor: Provides mechanical protection and EMI shielding
-
PVC Sheath: Durable and cost-effective protection
-
Flexible Design: Copper braid allows easy installation
Applications
-
Offshore platforms and marine installations
-
Shipboard control systems
-
Power and lighting circuits
-
Industrial automation
-
Mining operations
-
Chemical plants
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned or plain stranded annealed copper |
| Insulation | XLPE |
| Armor | Tinned/plain copper wire braid |
| Outer Sheath | PVC |
| Core Range | 1-37 cores |
| Cross Sections | 0.5-2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 - Marine cable design
-
IEC 60228 - Conductors
-
IEC 60092-360 - Insulation and sheath
-
IEC 60332-1 & 60332-3-22 - Flame retardant
-
IEC 60754 - Halogen free
-
IEC 61034 - Low smoke

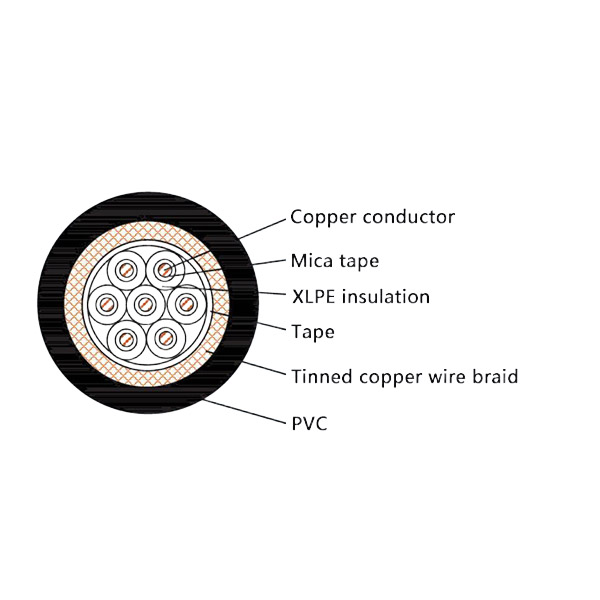

Construction Details
-
Series: Marine & offshore control cable (CK)
-
Conductor: Tinned/plain stranded copper
-
Insulation: XLPE
-
Armor: Tinned/plain copper wire braid
-
Outer Sheath: PVC
-
Sheath Color: Black or other colors
-
Flammability: Fire resistant (NA)
Product Advantages
-
Reliable fire resistance for safe operation
-
Cost-effective PVC sheath solution
-
EMI protection with copper braid armor
-
Suitable for various industrial environments
-
Compliant with international marine standards
-
Easy installation with flexible construction
