Product Overview
The CKJ92/NA marine control cable is designed with XLPE insulation and PVC outer sheath, providing reliable fire resistance and durability for marine and industrial applications in demanding environments.
Key Features
-
Fire Resistant: Maintains circuit integrity during fire (IEC 60331)
-
Flame Retardant: Excellent flame spread resistance (IEC 60332-1 & 60332-3-22)
-
Halogen Free: Meets halogen-free requirements (IEC 60754)
-
Low Smoke: Reduced smoke emission (IEC 61034)
-
Robust Construction: Galvanized steel wire armor for mechanical protection
-
Durable Sheath: PVC outer sheath for environmental protection
Applications
-
Offshore platforms and marine installations
-
Shipboard power, lighting and control systems
-
Chemical and petrochemical plants
-
Power generation facilities
-
Mining and metallurgical operations
-
Industrial control and automation systems
Technical Specifications
| Parameter | Details |
|---|---|
| Rated Voltage | 150/250V |
| Operating Temperature | 90°C |
| Conductor | Tinned or plain stranded annealed copper (IEC 60228) |
| Insulation | Mica glass tape + XLPE insulation |
| Armor | Galvanized steel wire braid |
| Outer Sheath | PVC (Polyvinyl Chloride) |
| Core Range | 1–37 cores |
| Cross-Sections | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
Compliance Standards
-
IEC 60092-350, 376 – Marine cable design requirements
-
IEC 60228 – Conductors for insulated cables
-
IEC 60092-360 – Insulation and sheathing materials
-
IEC 60331 – Fire resistance tests
-
IEC 60332-1 & 60332-3-22 – Flame retardant properties
-
IEC 60754 – Halogen-free gas emission
-
IEC 61034 – Low smoke density measurement

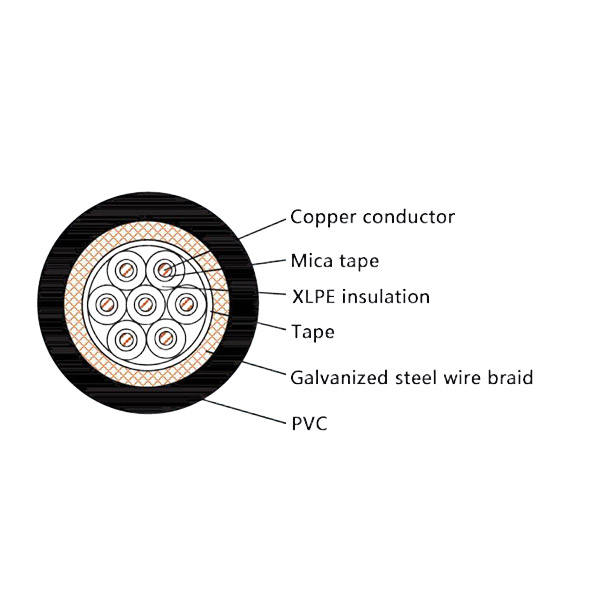

Construction Details
-
Series Code: CK (Marine & Offshore Control Cable)
-
Conductor: Tinned/plain stranded annealed copper wire
-
Insulation: Mica glass tape + XLPE insulation
-
Armor: Galvanized steel wire braid
-
Outer Sheath: PVC (Code 2)
-
Sheath Color: Standard black (other colors available)
-
Flammability Code: NA (Fire Resistant)
Product Advantages
-
Reliable fire safety performance with maintained circuit integrity
-
Robust mechanical protection with steel wire armor
-
Durable PVC sheath for long service life
-
Full compliance with international marine standards
-
Suitable for harsh environmental conditions
-
Cost-effective solution for marine applications
