Description

Product Overview

The CKJ95/NC marine control cable is engineered with XLPE insulation and a low smoke zero halogen (LSZH) thermoset sheath. It delivers reliable fire resistance, flame retardancy, and superior durability for critical offshore, marine, and industrial applications.

Key Features

  • Fire Resistant: Maintains circuit integrity in fire conditions (IEC 60331)

  • Flame Retardant: Excellent flame spread resistance (IEC 60332-1 & 60332-3-22)

  • Low Smoke Zero Halogen: Minimal smoke and toxic gas emission (IEC 61034, IEC 60754)

  • XLPE Insulation: High thermal stability up to 90°C

  • Robust Construction: Galvanized steel wire armor for mechanical protection

  • Thermoset Sheath: Halogen-free flame retardant compound (SHF2) for enhanced durability

Applications

  • Offshore platforms and marine installations

  • Shipboard power, lighting and control systems

  • Chemical and petrochemical plants

  • Power generation facilities

  • Mining and metallurgical operations

  • Industrial control systems

Technical Specifications

Parameter Details
Rated Voltage 150/250V
Operating Temperature 90°C
Conductor Tinned or plain stranded annealed copper (IEC 60228)
Insulation Mica glass tape + XLPE insulation
Armor Galvanized steel wire braid
Outer Sheath Halogen-free flame retardant thermoset compound (SHF2)
Core Range 1–37 cores
Cross-Sections 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm²

Compliance Standards

  • IEC 60092-350, 376 – Marine cable design requirements

  • IEC 60228 – Conductors for insulated cables

  • IEC 60092-360 – Insulation and sheathing materials

  • IEC 60331 – Fire resistance tests

  • IEC 60332-1 & 60332-3-22 – Flame retardant properties

  • IEC 60754 – Halogen-free gas emission

  • IEC 61034 – Low smoke density measurement

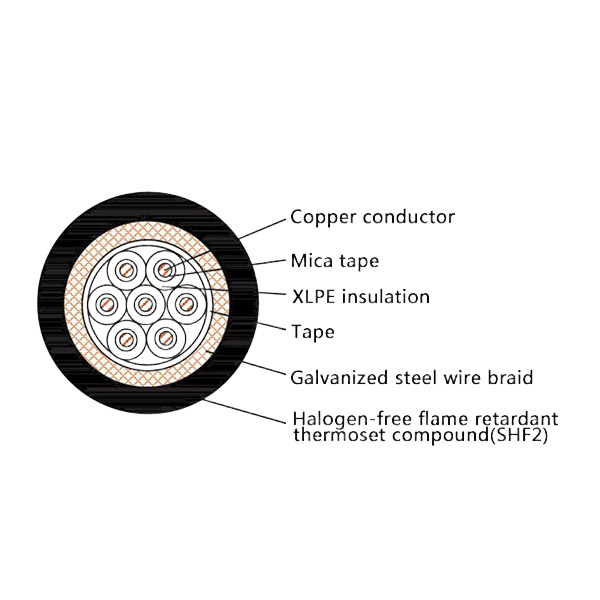

Construction Details

  • Series Code: CK (Marine & Offshore Control Cable)

  • Conductor: Tinned/plain stranded annealed copper wire

  • Insulation: Mica glass tape + XLPE insulation

  • Armor: Galvanized steel wire braid

  • Outer Sheath: Halogen-free flame retardant thermoset compound (SHF2)

  • Sheath Color: Standard black (other colors available)

  • Flammability Code: NC (Halogen Free, Low Smoke, Fire Resistant)

Product Advantages

  • Superior fire safety performance with maintained circuit integrity

  • Environmentally safe with zero halogen and low smoke emission

  • Enhanced durability with thermoset sheath for harsh environments

  • Full compliance with international marine and safety standards

  • Reliable performance in extreme temperature conditions

  • Comprehensive mechanical protection with steel wire armor
