CKJP95/NC Marine Control Cable: Low Smoke Zero Halogen, Fire Resistant, XLPE Insulated

Product Overview

The CKJP95/NC is a high-performance marine control cable designed with XLPE insulation and low smoke zero halogen (LSZH) properties. It offers excellent fire resistance, flame retardancy, and durability, making it suitable for critical applications in offshore and industrial environments.

Key Features

  • Fire Resistant: Complies with IEC 60331 to ensure circuit integrity during fire.

  • Flame Retardant: Meets IEC 60332-1 and IEC 60332-3-22 for flame spread resistance.

  • Low Smoke Zero Halogen (LSZH): Reduces smoke emission and toxic gas release (IEC 61034, IEC 60754).

  • XLPE Insulation: Provides excellent thermal and mechanical stability.

  • Screened & Armored: Features tinned copper braid or aluminum-polyester tape screen and galvanized steel wire armor for EMI protection and mechanical strength.

Applications

  • Offshore and marine installations (e.g., oil platforms, ships).

  • Power, lighting, and control systems in harsh environments.

  • Industrial sectors: metallurgy, chemical plants, power generation, and mining.

Technical Specifications

Parameter Details
Rated Voltage 150/250V
Operating Temperature 90°C
Conductor Tinned or plain stranded annealed copper (IEC 60228)
Insulation Mica glass tape + XLPE (IEC 60092-360)
Screen Tinned copper braid or Alu/Polyester tape with drain wire
Armor Galvanized steel wire braid
Outer Sheath Halogen-free flame retardant thermoset compound (SHF2)
Core Options 1–37 cores
Cross-Sections 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm²

Compliance Standards

  • IEC 60092-350, 376 – Marine cable design

  • IEC 60228 – Conductors

  • IEC 60092-360 – Insulation and sheath

  • IEC 60331 – Fire resistance

  • IEC 60332-1, 60332-3-22 – Flame retardant

  • IEC 60754 – Halogen-free

  • IEC 61034 – Low smoke emission

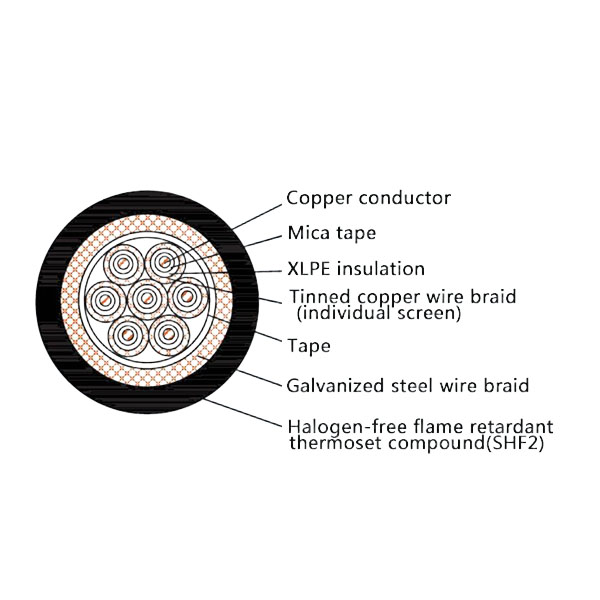

Construction Details

  • Series Code: CK (Marine & Offshore Control Cable)

  • Insulation Code: J (Mica Glass Tape + XLPE)

  • Screen Code: P (Tinned Copper Braid or Foil Tape)

  • Armor Code: 9 (Galvanized Steel Wire Braid)

  • Sheath Code: 5 (Halogen-Free Flame Retardant Thermoset - SHF2)

  • Flammability Code: NC (Low Smoke Zero Halogen, Fire Resistant)

Product Advantages

  • Enhanced safety with fire resistance and low smoke zero halogen properties

  • Robust construction for longevity in corrosive and demanding environments

  • Compliant with international marine and industrial standards

  • Reliable performance in extreme temperature conditions

  • Comprehensive protection with integrated screening and armor
