CKJP96/NC Marine Control Cable – LSZH, Fire Resistant, XLPE Insulated, Galvanized Steel Wire Armoured
Product Overview
The CKJP96/NC is a high-performance marine control cable designed for power, lighting, and control circuits in demanding environments such as offshore platforms, shipboard installations, and various industrial sectors including metallurgy, chemical plants, power generation, and mining.
It features XLPE insulation, a halogen-free flame retardant thermoplastic outer sheath (SHF1), and galvanized steel wire braid armour for mechanical strength and durability. The cable is fire resistant, flame retardant, low smoke zero halogen (LSZH), and provides integrated EMC protection through its screening.
Applications
-
Offshore platforms and shipboard installations
-
Power, lighting, and control circuits in harsh environments
-
Industrial sectors: metallurgy, chemical plants, power generation, and mining
Features & Benefits
-
Fire Resistant: Maintains circuit integrity during a fire (IEC 60331).
-
Flame Retardant: Inhibits the spread of flame (IEC 60332-1 & -3-22).
-
Low Smoke & Zero Halogen: Minimizes smoke emission and corrosive gases (IEC 61034, IEC 60754).
-
Robust Construction: Features XLPE insulation and galvanized steel wire armour for mechanical strength and durability.
-
EMC Protection: Integrated screening provides protection against electromagnetic interference.

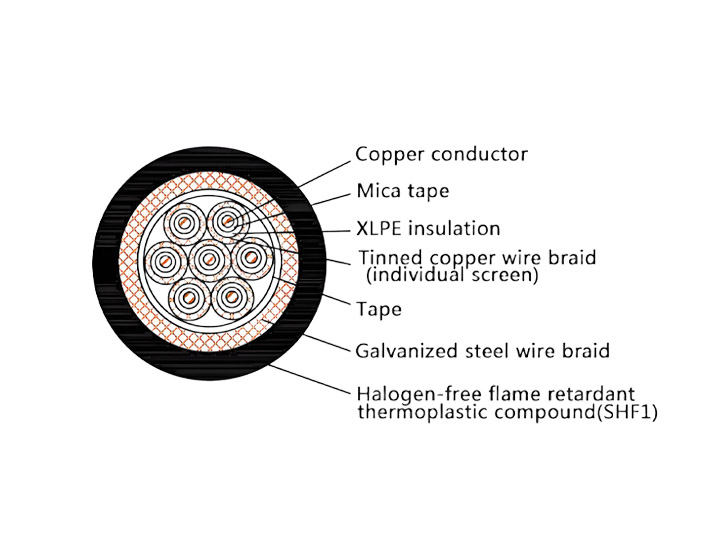

Construction
| Item | Code | Description / Material |
|---|---|---|
| Conductor | — | Tinned or plain stranded annealed copper per IEC 60228 |
| Insulation | J | Mica Glass Tape + Cross-Linked Polyethylene (XLPE) |
| Screen | P | Tinned copper braid or Aluminium/Polyester tape with drain wire |
| Armour | 9 | Galvanized Steel Wire Braid |
| Outer Sheath | 6 | Halogen-Free Flame Retardant Thermoplastic (SHF1) |
| Sheath Colour | — | Black (standard) or as required |
Product Code Explanation: CKJP96/NC
-
C – Control
-
K – Marine & Offshore
-
J – Mica Tape + XLPE Insulation
-
P – Tinned Copper Braid / Foil Screen
-
9 – Galvanized Steel Wire Armour
-
6 – Halogen-Free Outer Sheath
-
NC – Low Smoke Zero Halogen (LSZH) & Fire Resistant Performance
Technical Data
| Category | Specification |
|---|---|
| Rated Voltage | 150/250V |
| Max. Conductor Temperature | 90°C |
| Available Cross-Sections | 0.5mm², 0.75mm², 1.0mm², 1.5mm², 2.5mm² |
| Available Core Counts | 1 to 37 Cores |
Standards & Compliance
This cable is designed and tested in accordance with the following international standards:
-
IEC 60092-350, 376 – General Requirements & Design for Marine Shipboard Cables
-
IEC 60228 – Conductors of Insulated Cables
-
IEC 60092-360 – Insulating and Sheathing Materials
-
IEC 60331 – Test for Fire Resisting Characteristics
-
IEC 60332-1 – Test for Vertical Flame Propagation for a Single Insulated Wire/Cable
-
IEC 60332-3-22 – Test for Vertical Flame Spread of Vertically-Mounted Bunched Wires/Cables
-
IEC 60754-1 – Test on Gases Evolved During Combustion (Halogen Acid Gas Content)
-
IEC 61034 – Measurement of Smoke Density of Cables Burning Under Defined Conditions
Ordering Information
To request a quote or place an order, please provide the following information:
-
Product Type: CKJP96/NC
-
Rated Voltage: 150/250V
-
Number of Cores: 1 to 37 cores
-
Cross-Section: 0.5mm², 0.75mm², 1.0mm², 1.5mm², or 2.5mm²
-
Conductor: Tinned or plain stranded annealed copper
-
Screen: Tinned copper braid or Aluminium/Polyester tape with drain wire
-
Armour: Galvanized steel wire braid
-
Sheath Colour: Black (standard) or as required
-
Quantity: Total length in meters
