Application
This cable is used for cranes, handling systems, machine tools, lifts, and e-chain cable carrier systems. It is suitable for applications with high mechanical stresses and frequent bending in one plane only.
Standards
- IEC 60228
- IEC 60502

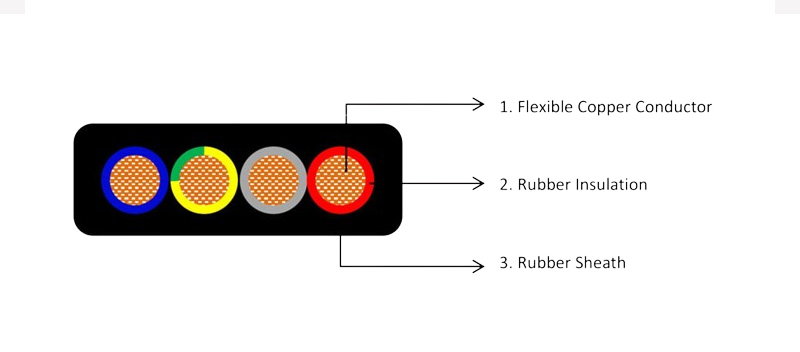

Construction
- Conductor: Flexible copper or tinned copper wire.
- Insulation: Rubber.
- Outer Sheath: Rubber.
- Reinforcement (Optional): Steel rope.
Features
- Rated Voltage: 300/500V.
- Bend Radius:
- Fixed Installation: 8 × cable diameter (8XD).
- Mobile Installation: 10 × cable diameter (10XD).
- Working Temperature:
- Fixed Installation: -35℃ to +80℃.
- Mobile Installation: -20℃ to +80℃.
Product Data Sheet
| Number of Cores | Cross Section (mm²) | Conductor Dia. (mm) | Insulation Thickness (mm) | Outer Sheath Thickness (mm) | Approx. Cable Dimension (mm) |
|---|---|---|---|---|---|
| 4 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4 × 17.6 |
| 5 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4 × 20.8 |
| 7 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4 × 27.2 |
| 8 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4 × 30.4 |
| 10 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4 × 36.8 |
| 12 | 1.5 | 1.6 | 0.8 | 1.6 | 6.4 × 43.2 |
| 4 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1 × 20.9 |
| 5 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1 × 24.8 |
| 7 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1 × 32.6 |
| 8 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1 × 36.5 |
| 10 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1 × 44.3 |
| 12 | 2.5 | 2.1 | 0.9 | 1.6 | 7.1 × 42.1 |
| 4 | 4 | 2.5 | 1.0 | 1.6 | 7.7 × 23.7 |
| 5 | 4 | 2.5 | 1.0 | 1.6 | 7.7 × 28.2 |
| 7 | 4 | 2.5 | 1.0 | 1.6 | 7.7 × 37.2 |
| 4 | 6 | 3.9 | 1.0 | 1.6 | 9.1 × 30.7 |
| 5 | 6 | 3.9 | 1.0 | 1.6 | 9.1 × 36.6 |
| 7 | 6 | 3.9 | 1.0 | 1.6 | 9.1 × 48.4 |
| 4 | 10 | 5.3 | 1.0 | 1.6 | 10.5 × 37.7 |
| 5 | 10 | 5.3 | 1.0 | 1.6 | 10.5 × 45.0 |
| 4 | 16 | 6.0 | 1.2 | 1.6 | 11.6 × 42.8 |
| 5 | 16 | 6.0 | 1.2 | 1.6 | 11.6 × 51.2 |
| 4 | 25 | 7.7 | 1.2 | 1.6 | 13.3 × 51.3 |
| 5 | 25 | 7.7 | 1.2 | 1.6 | 13.3 × 61.4 |
| 4 | 35 | 9.4 | 1.2 | 1.8 | 15.4 × 60.2 |
| 7 | 35 | 9.4 | 1.2 | 1.8 | 15.4 × 95.6 |
| 4 | 50 | 11.1 | 1.4 | 1.8 | 17.5 × 70.3 |
| 4 | 70 | 13.0 | 1.4 | 1.8 | 19.4 × 79.8 |
| 4 | 95 | 16.0 | 1.6 | 1.8 | 22.8 × 96.4 |
| 4 | 120 | 16.5 | 1.6 | 1.8 | 23.3 × 98.9 |
