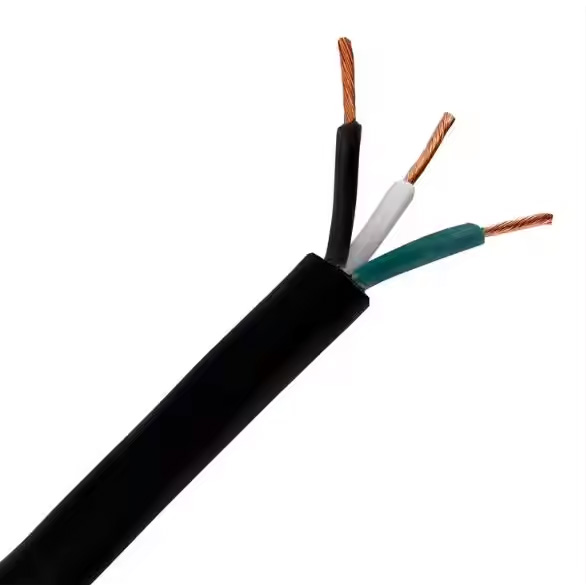

Product Overview
Premium lightweight rubber cable designed for connecting portable appliances in dry/damp environments. Features ethylene propylene rubber (EPR) insulation, oil-resistant sheath, and Class 5 copper conductors. Ideal for home, workshop, and commercial equipment requiring flexibility and medium stress resistance.
1. Key Applications
-
Home/Office:
Vacuum cleaners, portable heaters, IT equipment -
Workshops:
Power tools, testing instruments, temporary lighting -
Commercial Kitchens:
Mixers, blenders, food processors (damp conditions) -
Entertainment:
Stage lighting, mobile sound systems -
⚠️ Restrictions: Not for permanent outdoor use
2. Construction & Materials
| Layer | Material | Standard | Key Property |
|---|---|---|---|
| Conductor | Bare Copper | IEC 60228 Class 5 | 32/0.20mm stranding (1.0mm²) |
| Insulation | EPR Rubber | EN 50525-2-21 | Heat/Oil Resistance (+60°C) |
| Filler | PP Rope | Non-conductive | Maintains core geometry |
| Sheath | Rubber | Halogen-free | Abrasion/Water/Oil Resistance |
Core Identification (per EN 60445):
-
2-core: Brown (L) + Blue (N)
-
3-core: Brown + Blue + Yellow/Green (Earth)
-
4-core: Brown + Blue + Grey + Yellow/Green
-
5-core: Brown + Black + Grey + Blue + Yellow/Green
3. Technical Specifications
| Parameter | Value |
|---|---|
| Rated Voltage | 300/500V |
| Temp Range | -20°C to +60°C (operating) |
| Bending Radius | 6 × Cable Diameter |
| Test Voltage | 2.5kV AC/5min |
| Flame Rating | IEC 60332-1-2 Compliant |
| Conductor Resistance | ≤20.0 Ω/km (1.0mm²) |
4. Dimensional Data (Selected Configurations)
| Configuration | Cond. Stranding | Insul. (mm) | Sheath (mm) | Diameter (mm) | Weight (kg/km) |
|---|---|---|---|---|---|
| 3×1.0mm² | 32×0.20mm | 0.6 | 0.9 | 7.0 | 77 |
| 3×1.5mm² | 30×0.25mm | 0.8 | 1.0 | 8.4 | 115 |
| 4×1.5mm² | 30×0.25mm | 0.8 | 1.0 | 9.4 | 145 |
| 4×2.5mm² | 50×0.25mm | 0.9 | 1.1 | 11.1 | 210 |
5. Standards & Certifications
-
Primary Standard: EN 50525-2-21 (H05RR-F)
-
Safety Marks: CE, UKCA
-
Conductor: IEC 60228 Class 5
-
Quality System: ISO 9001
-
Material Compliance: RoHS 3, REACH
6. Product Advantages
-
Extreme Flexibility
6D bending radius for tight spaces and repeated movement -
Environmental Resistance
Withstands oils, detergents, and 95% RH humidity -
Safety Assurance
Flame-retardant sheath, 2500V dielectric strength -
Durability
50,000 flex cycles (EN 50396 tested)
-
Easy Identification
Color-coded cores per EN 60445
7. Packaging Options
-
Standard Reels: 100m, 200m, 500m
-
Cut-Length Service: ≥10m with printed meter marks
-
Custom Printing: Branding/logos on sheath
-
Export Packaging: Water-resistant wrapping
