Product Overview
The CJ86 Armored Fire-Resistant Marine Power Cable delivers critical circuit integrity in extreme conditions for ships, oil platforms, and offshore structures. Engineered to IEC 60331-21 fire resistance standards, it combines copper braid armor for EMI protection with halogen-free safety for power, lighting, and control systems.
Key Applications
-
Fixed installations in ships (engine rooms, open decks)
-
Offshore oil platforms & marine infrastructure
-
Power distribution, lighting circuits, control systems
-
Critical Note: Use black sheath or protective covering for UV-exposed areas

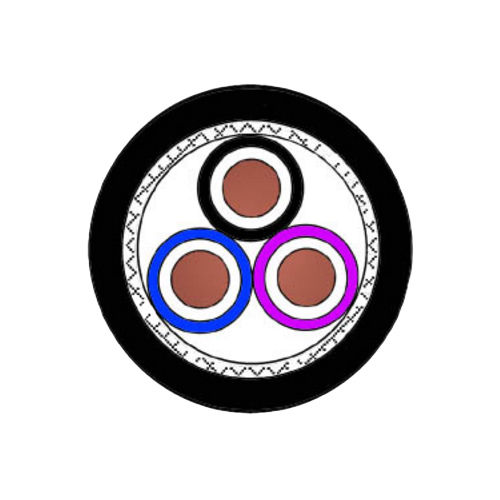

Construction & Materials
| Layer | Specification |
|---|---|
| Conductor | • 1.0–10mm²: Class 2 stranded copper • 16–240mm²: Class 5 flexible stranded copper • Annealed copper available (custom order) |
| Insulation | Mica Tape + XLPE (Cross-Linked Polyethylene) |
| Bedding | Non-hygroscopic separator tape |
| Armor | Electromagnetic copper wire braid |
| Sheath | Halogen-Free Thermoplastic Polyolefin (SHF1) |
Technical Specifications
| Parameter | Specification |
|---|---|
| Rated Voltage | 0.6/1 kV (Uo/U) |
| Operating Temp | • Continuous: 90°C • Min. Operating: -40°C • Min. Installation: -15°C |
| Fire Resistance | IEC 60331-21 Series (750°C–1000°C) |
| Flame Retardancy | IEC 60332-1-2 (Single Cable) |
| Halogen/Smoke Safety | • Gas Toxicity: IEC 60754-1 (Non-toxic) • Gas Corrosivity: IEC 60754-2 (Low corrosion) • Smoke Density: IEC 61034 (Low smoke) |
| EMI Protection | Copper braid armor |
Bending Radius (Fixed Installation)
| Cable Type | Outer Diameter (D) | Min. Bending Radius |
|---|---|---|
| Copper Braid Armored | All sizes | 6 × D |
| Non-Armored | D ≤ 25 mm | 4 × D |
| Non-Armored | D > 25 mm | 6 × D |
| Flexible versions available for mobile equipment |
Compliance & Standards
-
Design & Safety: IEC 60092-350, IEC 60092-353
-
Fire Performance: IEC 60331-21, IEC 60332-1-2
-
Environmental Safety: IEC 60754-1/2, IEC 61034
Product Advantages
-
Fire Survival: Maintains operation at 1000°C (IEC 60331-21) during emergencies.
-
Arctic-Grade: Withstands -40°C for polar operations.
-
EMI/RFI Shielding: Copper braid blocks interference in sensitive electronic zones.
-
Zero Halogens: SHF1 sheath emits non-toxic gases (SOLAS-compliant for passenger ships).
-
UV Resilience: Black sheath option for open-deck solar exposure.
-
Flexibility: Class 5 conductors for dynamic applications (customizable).
