MGH Halogen-Free Marine Power Cable | SOLAS Compliant | DIN 89160 | IEC 60332-3 Cat A | 600/1000V

HEPR/EPR Insulation Marine Shipboard Power Cables14
Description

MGH Halogen-Free Marine & Offshore Power Cable

Product Overview:

The MGH Marine Power Cable is engineered for fixed installations on ships, offshore units, and passenger vessels. Compliant with DIN 89160, it delivers exceptional safety and reliability in demanding maritime environments.

Key Applications

  • Fixed wiring in all shipboard areas (engine rooms, accommodation, open decks)

  • Power, signaling, and control circuits

  • Passenger ships (enhanced safety critical)

  • Offshore platforms and floating units

  • Note: Screened design required for radio stations/above upper metallic decks.

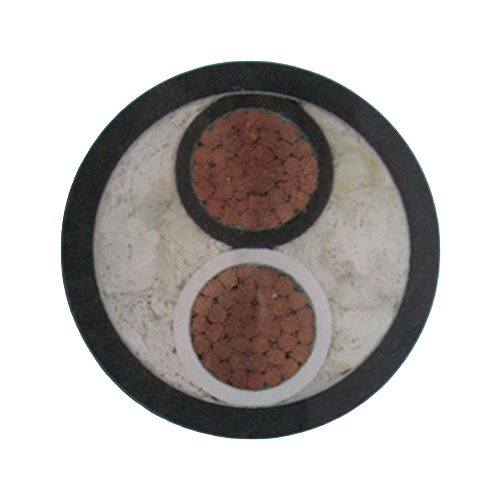

Construction & Materials

  1. Conductor: Class 2 annealed stranded bare copper

  2. Insulation: Crosslinked HEPR (Hard Grade Ethylene Propylene Rubber)

  3. Filling/Tape: Non-hygroscopic core stabilization

  4. Sheath: Halogen-Free Polyolefin Compound

MGH Halogen-Free Marine Power Cable | SOLAS Compliant | DIN 89160 | IEC 60332-3 Cat A | 600/1000V

Critical Safety & Performance

  • Flame Retardancy: IEC 60332-3-22 Cat. A & IEEE 45-18.13 compliant

  • Halogen-Free: Zero halogens (IEC 60754-1 & -2)

  • Low Smoke Density: IEC 61034 compliant

  • Low Toxicity/Non-Corrosive Gases: SOLAS compliant

  • SOLAS: Meets Safety of Life at Sea requirements

Electrical & Mechanical Specifications

Parameter Value
Rated Voltage (Uo/U) 600/1000V
Test Voltage 3500V AC
Min. Bending Radius
Metal Braid Armoured 6 × Cable Diameter (D)
Non-Armoured (D ≤ 25mm) 4 × D
Non-Armoured (D > 25mm) 6 × D

Product Advantages

  • Safety Critical: Halogen-free construction minimizes toxic/corrosive gas emission during fire

  • Full Compliance: DIN 89160, SOLAS, IEC, and IEEE standards

  • Marine Durability: HEPR insulation + polyolefin sheath resist oil, chemicals, and seawater

  • Passenger Ship Optimized: Low toxicity properties ideal for human evacuation scenarios

  • Future-Proof: Meets global maritime regulatory requirements

Optimized for: Shipbuilding, offshore energy, and applications demanding maximum fire safety & environmental protection.
